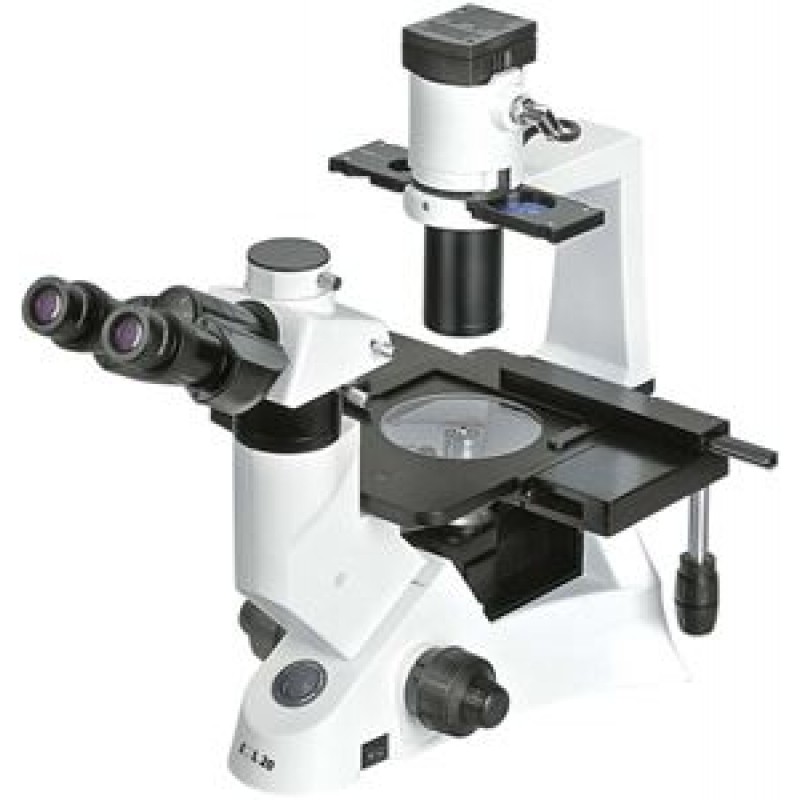

Cell cultivation examination and Assisted Reproductive Technologies (ART) such as IVF become easy when a researcher is with a microscope that is modular as well as friendly like the LABOVISION’s IXL 20. High Quality optics and a sturdy yet modular design make the IXL 20 inverted microscope closest to one’s heart.
SPECIFICATION
| STAND | Ergonomically designed sturdy stand of anti rust material |
| EYEPIECES | Wide Field Eye Piece WF 10x/22mm Anti Mould Treated paired |
| VIEWING BODY | Siedentopf Trinocular, 30° inclined, 360° rotatable, IPD 48-75mm |
| FOCUSING | Coaxial Coarse and fine adjustment, Vertical objective movement. Coarse Stroke 37.7mm per rotation, Fine Stroke 0.2mm per rotation |
| NOSEPIECE | Quintuple Reverse Angle Nosepiece (Ball Bearing Type). |
| MECHANICAL STAGE | Double Plate 142mm×133mm. X-Y travel 76mm×50mm, spring clip Double Slide holder |
| ILLUMINATION | Transmitted Illumination System 6V-30W Halogen with Intensity Control, with Power Supply 220V or 110V, I. Optional LED lamp with Intensity Control |
| OBJECTIVES | IX Series LWD DIN INFINITY PLAN Achromatic Objectives 4x/ NA 0.1 WD18mm, 40x/NA 0.60 WD2.6mm <br/> IX Series LWD DIN INFINITY PLAN Achromatic Phase Objectives 10x/ NA 0.25 WD2.6mm, 20x/NA 0.40 WD5.1mm |
| CONDENSER | Long working distance condenser NA0.3, LWD72mm suitable for phase contast/BF with 10x-20x, 40x phase Annulus Plate and centering Telescope. |
| OPTIONAL ACCESSORIES | Image Capture Module with Image Analysis Software, Simple Polarizing Attachment. |
| FILTERS | Blue, Green and Ground Glass |
CLINICAL MICROSCOPE IXL 20
