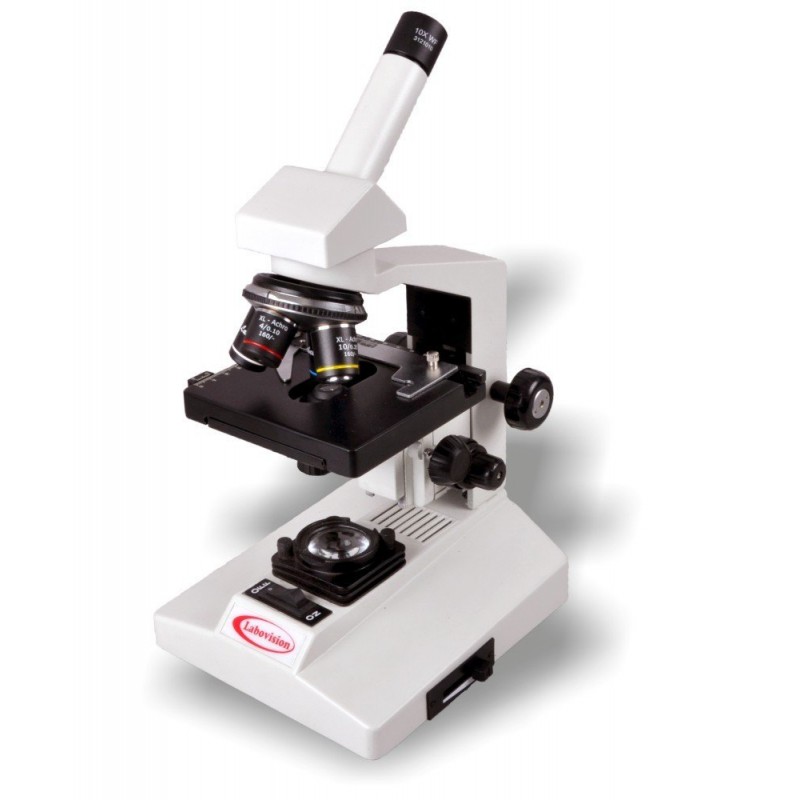

Monocular tube, 45° inclined, 360° rotatable
Wide Field eyepiece HKW 10x
Quadruple Nosepiece (Ball bearing type)
VA series Semi Plan Achromatic objectives
4x, 10x, 40x (SL) and 100x (Spring loaded, oil immersion)
Stage rectangular size 125 x 115mm with double plate
mechanical stage cross travel 74 x 42mm
with co-axial control
Sub-stage ABBE condenser NA 1.25 with aspheric lens. Iris
diaphragm and special day light blue filter
Separate coarse and fine focusing mechanism with tension
control
Illumination system 6V-20W Halogen with intensity control.
Power Input 220V AC
Packed in moulded styrofoam box, with operation manual, dust
cover and cleaning cloth
