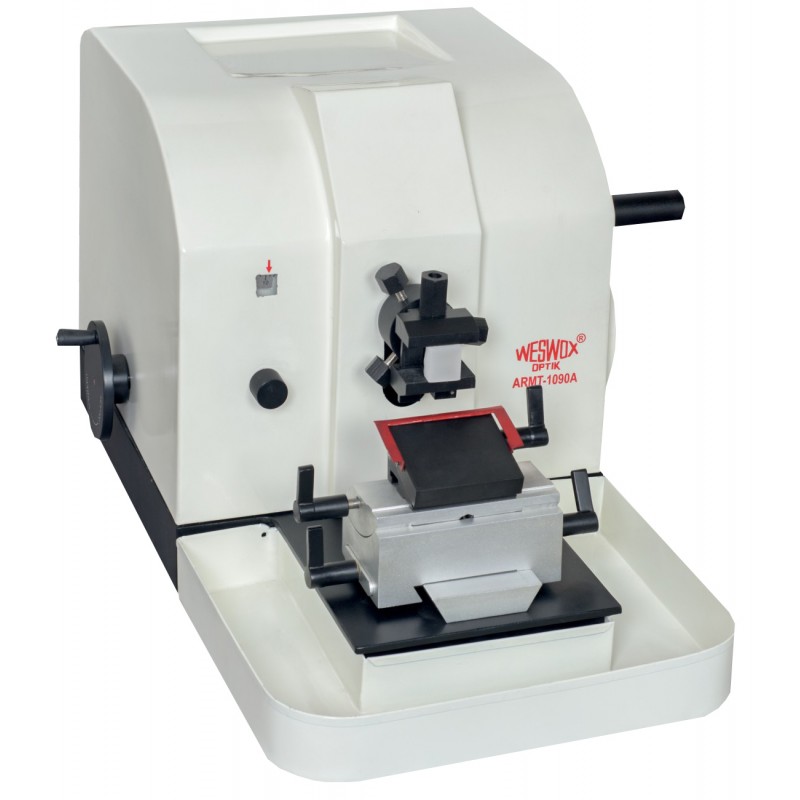

WESWOX ADVANCE ROTARY MICROTOME

(Leica Type)

TECHNICAL SPECIFICATIONS:

ü  Rust proof construction.

ü  Manual Microtome with specimen feed system.

ü  Lockable hand wheel at any position allowing change of blade/specimen easier and safe.

ü  Lateral knife adjustment to ensure that the entire width of the blade is used without releasing the blade clamping mechanism.

ü  Large storage capacity on the top of the instrument for easy access of tools.

ü  Finger protection guard to protect the used from any injuries caused due to blade.

ü  Robust and stable base plate for max/imum stability to the microtome.

ü  Ergonomic and user friendly design.

ü  Section Waste tray to collect section waste and is easily removable for cleaning purposes.

ü  High Precision Specimen feed.

Section/Trimming Thickness Range  :0.5µm-60µm

Setting Values: 0.5µm-2µm in 0.5µm increments.

                                    2µm-20µm in 1µm increments

                                    20µm-60µm in 5µm increments.

Minimum Setting Value: 0.5µm

Object feed: 28mm

Vertical stroke: 60mm

Specimen horizontal feed: 28mm

Specimen Orientation: x- and y-axes   : universal 8o

                                                   Z-axis: up to 360o

Max. Specimen size             : 50x50mm.

Operation                              : Manual.

Weight                   : 35 kg. Standard accessories: High profile disposable blades pkt of 50 nos

Other Description mentioned in e-brochure.
