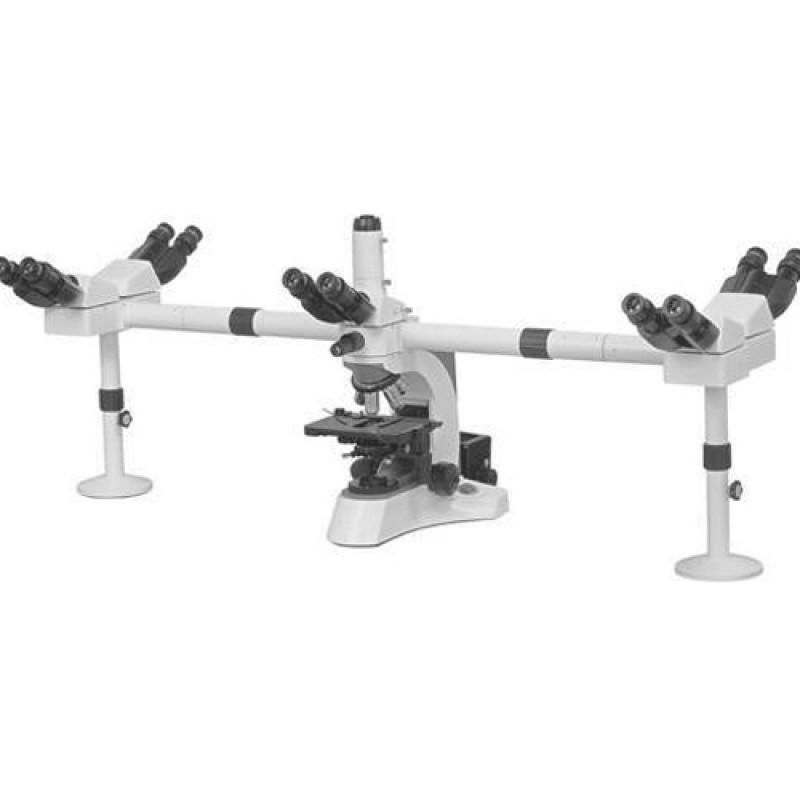

Penta Head Microscope
Details :
Incorporate in innovative optical and structural design ideas, facilitating group discussion and consultation by five observers during important meeting,conferences and seminars Penta Head is equipped with five observation head, included at for comfortable viewing, include the central Trinocular Head to accept optical photo micrographic and video Equipments. The built is LED Green
Light Pointer, with adjustable brightness can be moved in the filed of view during group discussion supplied as above with following infinity corrected plan options.
Eyepiece-WF 10x/20-5Pairs
TECHNICAL SPECIFICATION:
Light Pointer, with adjustable brightness can be moved in the filed of view during group discussion supplied as above with following infinity corrected plan options.
Eyepiece-WF 10x/20-5Pairs
TECHNICAL SPECIFICATION:
- EYEPIECE: Ultra wide fields and compensating WF 10x paired eyepiece(Fieldno.22)-5 pairs.
- FOCUSING: Low and forward position Co-axial coarse and fine focusing mechanism supported on ball bearing with tension control ring and pre-focus stopper. Coarse focus 30mm.Fine motion reading to 0.002mm.
- MAGNIFICATION: 40X-1000X Standard Optionally upto 2000X
- CONDENSER: Swing out condenser N.A. 09/0.25 to provide perfect illumination under all magnification to all the observers.
PLAN OBJECTIVE:
Infinity Corrected Super Plan Objective 4x,10x,40x,100x(anti Fungus
LIGHT POINTER:
- A Moveable Built In Green Led Pointer(brightness Adjustable)is Supplied As A Standard Accessory.
OBSERVATION HEAD:
- One number high Transmission and top of Trinocular head include Compensation free 360 rotatable. Four numbers compensations free Binocular Head inclined and 360 rotatable.
- OPTICAL SYSTEM: Infinity corrected plan optical with Din Standard optics(True Color).
NOSEPIECE:
- Inward revolving quintuple nosepiece with ball bearing system for perfect alignment.
- ILLUMINATION : koehlers illumination with 12V/50W super bright halogen lamp with variable control.
- Standard Configurations
Eyepiece:
- Ultra wide fields and compensating WF 10x paired eyepiece(Field no.22)-5 pairs.
- Plan Objective:
- Infinity Corrected Super Plan Objective 4x,10x,40x,100x(anti Fungus)
Optional accessories
- 5/8 Mega pixel Digital Camera for Microscope
- Phase contrast kit.
- Dark filled condenser
- Digital Camera(10/12/15 Mega Pixel)
- Image Analysis Software
- 2/3 Mega pixel Digital Camera for Microscope
- Phase contrast kit.
- Dark filled condenser
- Digital Camera(10/12/15 Mega Pixel)
Image Analysis Software
- Stage : SUPER HARD COATED Large Mechanical Stage 185x145mm with low position co-axial X-Y motion controls. X-Y motion 75mm x 55mm.
- Magnification: 40X-100X STANDARD optionally upto 2000X.
