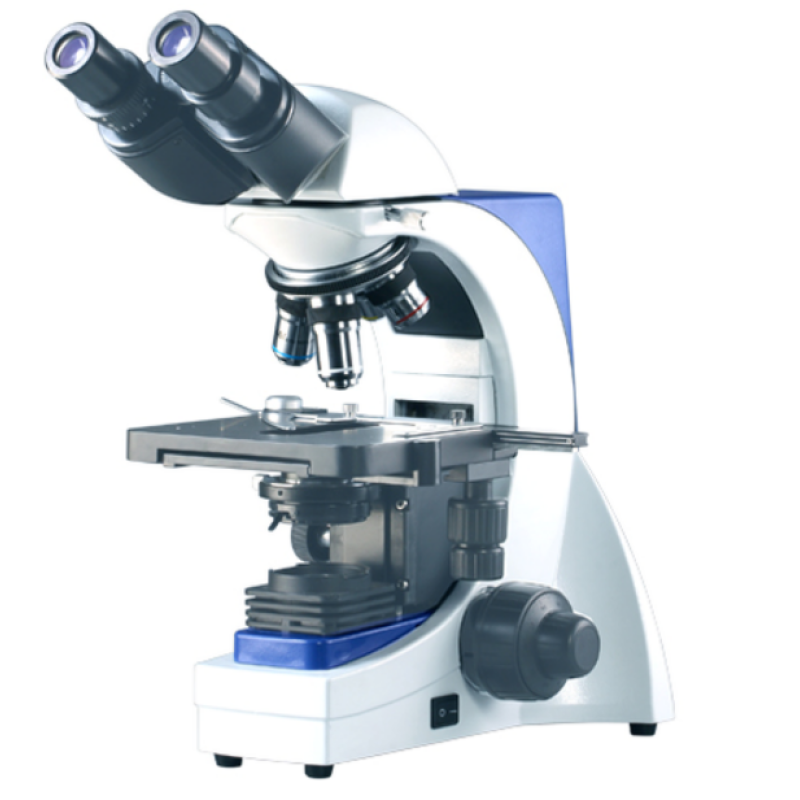

Binocular Microscope

Product Details:

Minimum Order Quantity	1 No
Portable	No
Model	SE

Our company is recognized as a well-known manufacturer and exporter of premium quality Binocular Biological Microscope. It is used to see micro objects which cannot be seen through naked eyes. This microscope is manufactured using high grade components with the help of latest technology under the guidance of our skilled professionals. Appreciated for its rigid construction, optimum performance, easy to use and durability features, this Binocular Biological Microscope are highly demanded in the industry. We offer this microscope at very nominal price to the clients.

EYEPIECE

• EWF 10X FOV 18mm





OBJECTIVES(finite)

• E-Plan Achromatic 4X
• E-Plan Achromatic 10X
• E-Plan Achromatic 40X(S L)
• E-Plan Achromatic 100X Oil(S L)



MECHANICAL BODY

• Co-axial focusing system. PRE-FOCUSING LEVER TENSION ADJUSTMENT RING. The slow motion has 1Div=0.002mm.
• Reverse angle quadruple nosepiece revolves on ball bearing.
• Mechanical stage size 125mm X 135mm having low positioned co-axial controls on ball bearing.
• Built-in-base illumination system with 6V-20W halogen bulb and power supply.
• Cross movement 55mm X 75mm.

 SUB STAGE CONDENSER

• Abbe Condenser N.A.1.25 swing out filter holder, Iris Diaphragm.

  STANDARD ACCESSORIES

6V/20W Halogen Tungsten Bulb, Blue Grey filters, STYRO FOAM Molded Pack
