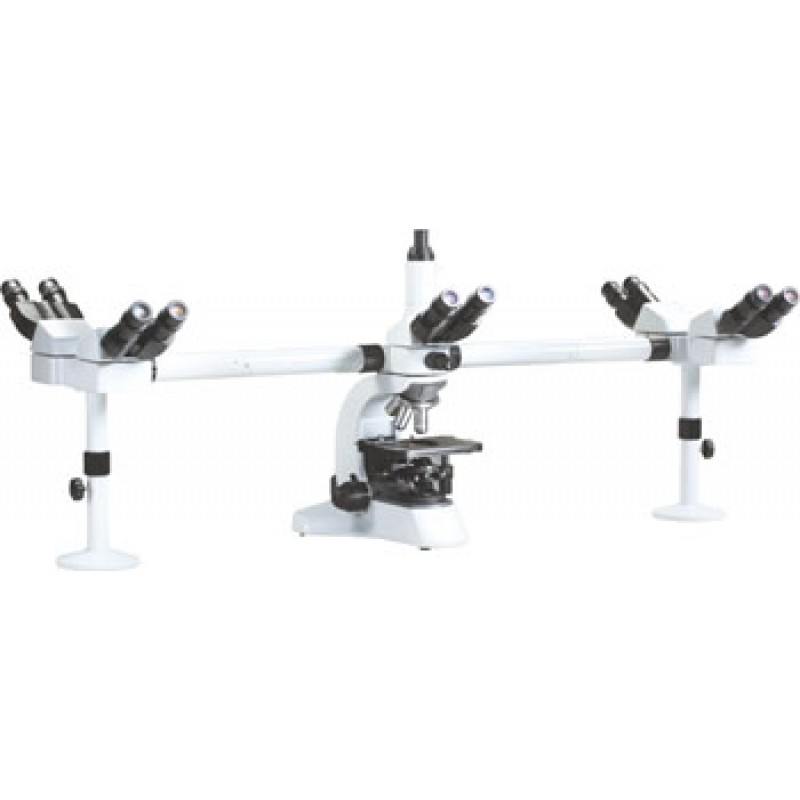

Teaching Microscope
Driven for teaching & research applications, the BXL PENTEX incorporates CCIS plan achromatic objectives to produce crisp, flat & high contrast images at all magnifications.
Specifications:
Warranty Information 2 Years parts.
1 year Electronics
| Stand | Single mold sturdy stand with anti rust materials. Extended base for better stability. | |||
| Observation Head | Trinocular head with observation head inclined at 30º rotatable at 360º. (ONE SET) Binocular observation heads inclined at 30º rotatable at 360º fixed on adjustable stands (FOUR SET). Diopter adjustment ring on ocular provides correction for eye acuity. | |||
| Eyepiece | Wide Field Eyepiece 10x (PAIRED) FOV 22mm | |||
| Nosepiece | Quintuple Reverse angle nosepiece revolves on ball bearing with positive indexing. Soft rubber knurled grip on nosepiece. | |||
| Objectives | CCIS Plan Achromatic 4x. CCIS Plan Achromatic 10x. CCIS Plan Achromatic 40x (SL) CCIS Plan Achromatic 100x (SL) Oil. | |||
| Stage | Mechanical stage Size 185mmX142mm, supported on ball bearing guideways and having low positioned co-axial controls for stage movement. | |||
| Focusing | Co-axial focusing control with ball bearing guideways & large knobs, pre focusing lever & tension adjustment ring. The slow motion has 1DIV=0.002mm. | |||
| Condenser | Sub stage Abbe condenser NA 0.9/0.25 having a spherical lens, adjustable iris diaphragm, swing out filter holder and top lens. | |||
| Illumination | Incorporates 12V/50W halogen lamp with adjustable brightness and Power supply. Collector in base fitted with iris diaphragm for KOHLERs light system. | |||
| Packaging contents | STYRO FOAM Molded pack. Bulb & Grey filter |
| Indicator | Green LED pointer, Brightness adjustable. |
Teaching Microscopes BXL PENTEX
