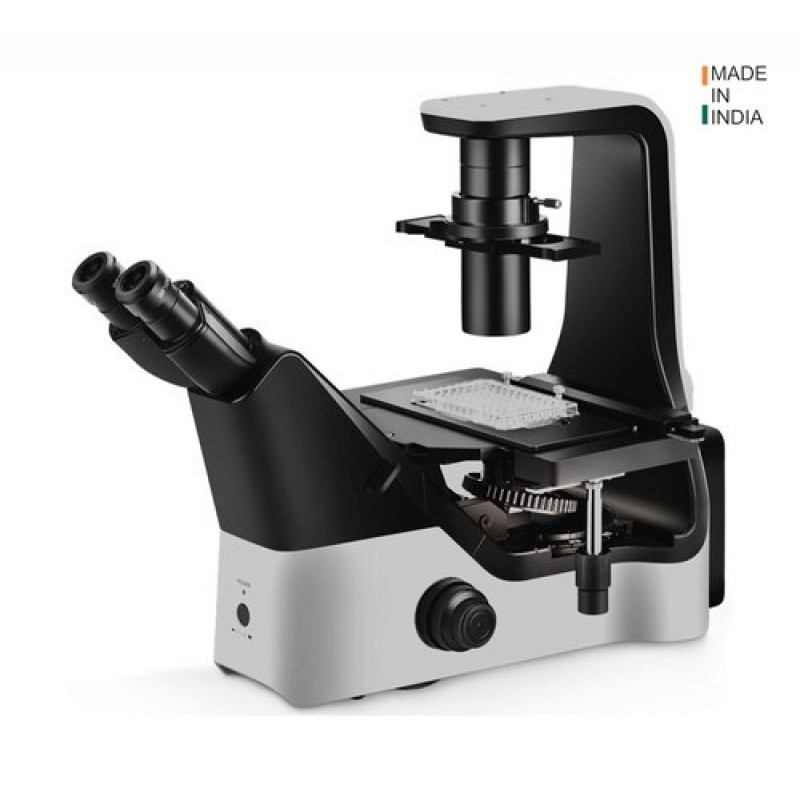

Advanced Inverted Research Microscope

Product Details :

Product Description: RL-2918 with NIS60 is suitable for broad range of observation methods. Smaller body and improved ease of use will directly benefit research laboratories and improve workflow. In addition to conventional contrast, microscope is versatile in observation methods, including Phase Contrast, DIC,and Hoffman Modulation Contrast.

specification:

Body: Metal body, rugged, ergonomic design, touch point treated, scratch resistant, acid resistant texture painted, intensity controller & on/off switch (in-front) Eco Illumination, rubber feet, with intensity memory function*, auto off*,

Optical system: Infinite optical system, chromatic free, colour corrected, anti-fungal, anti-bacterial coated (multi-layered hard coated), works best in entirvisible spectrum, colour coded objectives, parcentered, suitable for bright filed, phase, Fluorescence, DIC, Emboss, DIC/inversion contrast, IMC, IPC contrast, hoffman contrast, pseudo 3D etc. infinity optical with tube lens 1x, Best in class of objectives best optical performance from UV to NRI.

Illumination: 3W LED illumination life 30,000 hrs, equivalent to 50W halogen, kelvin 6200, suitable for bright field, phase, fluorescence, IMC, hoffman, DIC/Plastic DIC, inversion contrast, emboss etc.

Viewing Head: Binocular inclined at 45, sidentopf head having 30mm dia ocular, rotatable through 360, IPD-from 48-75, left side camera port with splitting ratio 100:0, 0:100 (with relay lens upto 0.7x), free space upto 110mm with FOV upto 25mm

Nosepiece: Inward tilted, precise quintuple revolving on multiple ball bearing, inbuilt DIC/Plastic DIC slot and relief contrast/equivalent contrast.

Eyepiece: Paired, high eye-point WF 10X, FOV-22mm, multilayered coated, high quality, good contrast, abrresion free, aplantic, precentered, diopter adjustment on both eyepiece (5mm)

Mechanical Stage: Rectangular, right hand low drive control, fixed size 170(X)x250(Y)mm, attachable mechanical stage:130(X)x84(Y)mm, with object guide, accepts different types of micro-testplate, hemocyto meter, petridish holder, glass slide holder & culture flask holder, clear acrylic/glass circular insert, universal holder for holding different types of plates, multiwell plates, dishes, universal slide holder.

Objectives: Infinity, long working distance, plan 4X,  N.A. 0.13, W.D. 22mm, unbreakable container for storage

Infinity, long working distance, plan 10X,  N.A. 0.3, W.D. 7.94mm, unbreakable container for storage

Infinity, long working distance, plan 20X,  N.A. 0.45, W.D. 7.66mm, unbreakable container for storage

Infinity, long working distance, plan 40X, N.A. 0.65, W.D. 3.71mm, unbreakable container for storage

Phase slider: Integrated precentered phase slider for 4X/5X and single phase slider for 10X/20X/40X, empty position for bright field. special supporting slider for phase contrast will be provided to completely remove HALO effect

Focusing: Co-axial, coarse & fine, coarse range-37.5mm, coarse-9mm per rotation, fine precision 1m, fine 0.1mm per rotation, Tension Control

Condenser: Extra long working distance condenser N.A. 0.3, WD 80mm with condenser, without condenser WD 190, dismountable, slot for slider, (ND Filter) with phase slider upto 100x, optinally turret condenser with working distance 36mm, 6-positions for phase, DIC, brightfield is also available

Power Supply: SMPS based, wide operating voltage range, 90V-250VAC, 50/60Hz

C-Shield: Contrast shield, for effectively blocking the interference of external light

Standard Acce: Cleaning cloth

Vinyl cover

Allen keys

Fuses - 2 no's

Instruction manual

Warranty card

Blue Filter (frosted & Plain)

Power Cord (country Specific)

Integrated C-mount 0.5 X

Additional Information:

• Delivery Time: 5-6 DAYS
