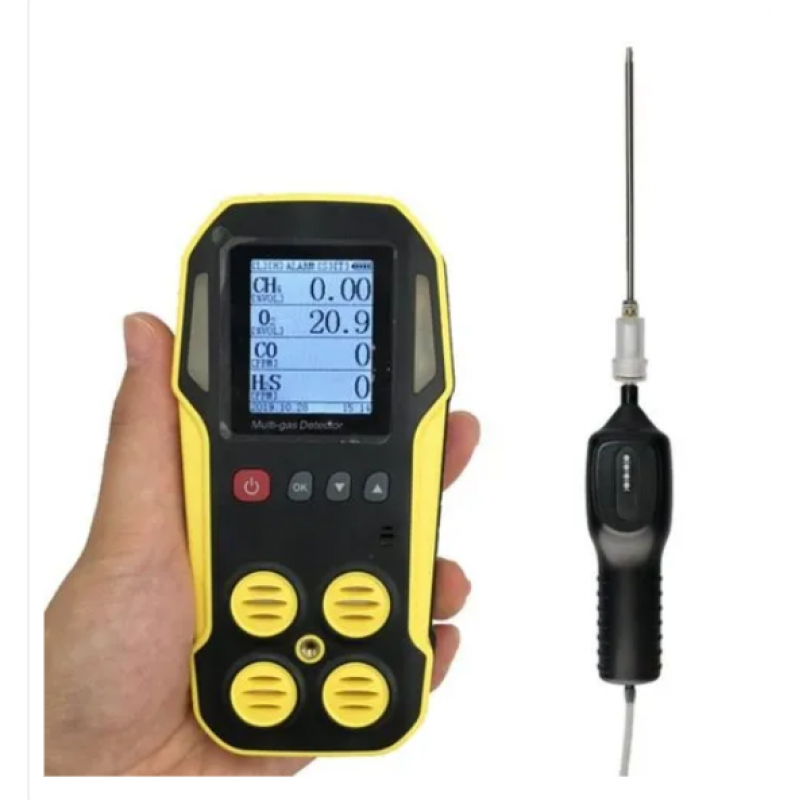

Portable Single,Multi Gas Monitor (Model Ats-103m)

Product Details:

Minimum Order Quantity	1 Piece
Detector Type	Portable Multi Gas
Name of Gases Detected	PORTABLE SINGLE/MULTI GAS MONITOR
Brand	Applied techno systems
Model	ATS-103M
Power Source	Battery
Display Type	Digital
Country of Origin	Made in India

Portable and multi-gas detector simultaneously monitors and displays up tofive gases. The compact and field tough ATS-103M features a non-intrusiveintegrated sampling pump designed for performance, reliability and ease-ofuse.It's optional Data Logging and computer interface features can be used forfurther detailed analysis.
SPECIAL FEATURES:
Automatic OperationSelf Diagnostic CheckProven Sensor TechnologyContinuous, Stable AlphanumericDisplayCustomized Visual & Sound AlarmsSuitable for use in hazardous areaClass-1, Div.-1, Groups A, B, C & DZone ‘0’ of Gas Group IIC
Diffusion or Suction SamplingLong Life Rechargeable BatteriesData Logging and Rs 232 Output CapabilityOperation modes: Real time always readyLight weight, handy and simple to useSampling probeCSIR-CIMFR Approved
OPTIONS:
On Start Up, The Instrument Automatically Goes Through Complete Self Integrity Check,On Demand. The Press Of Sampling Switch Initiates The Sampling Through SuctionAnalysis And Digitally Displays The Results. “Hold Key” Enables Monitor/Analysis fora ParticularParameter of Interest
SPECIFICATION:
Gases detected : CH4/LEL, O2, H2S, COMeasuring range :CH4: (0.00~5.00)%vol (Optional)LEL: (0~100)%LELO2 : (0~30.0)%volH2S: (0~100)ppmCO: (0~1000) ppmResolution ratio : CH4: 0.01, LEL: 1%LEL, O2: 0.1%vol,H2S:1ppm, CO: 1ppmSensor : High quality catalytic sensor for LELElectrochemical sensor for H2S, CO & O2Sensor lifetime : ≥ 2yearsResponse time : CH4: ≤20S ( T90 ), LEL: ≤20S ( T90 ), O2: ≤35s(T90),H2S: ≤45S ( T90 ), CO: ≤45s (T90)Alarms : Audible--buzzer with ≥85dB @1m audibleVisible--flashing red LED, ≥20m visibleVibrationAlarm point : High and low, fully adjustableTemperature : -25 Deg. C to +55 Deg. CContinuous working time : ≥13hoursDisplay : Liquid Crystal Display(LCD)Battery : 3.7V/1500mACharging time : 4-5 hoursDust and water resistance : IP67Size & Weight : 136*70*37mm,250g.
