IR Dryer

Product Details :

Infra red Ray sources are Ceramic coated thus ensures no particle shedding or black particle generation, which may contaminate washed equipment. As a property of Infra red rays, it reduces the microbial counts also. Infra red dryer is more effective for drying Stainless Steel equipment because Stainless Steel surface is a reflective surface.

In this case temperature is not the criterion, as it will give heating effect only to the object on which it falls. Infra red rays do not require air as media; thus rays will not increase temperature of the surrounding atmosphere but it will give heating effect to the object on which it falls.

Power consumption by Infra red ray Dryers is less.

Infra red rays are absolutely safe to human body.

Heat up & cool down time

• 1.5 to 5.5 min.(approx)


This unit comprises of control Panel with temperature monitoring and current measuring features.

The wiring inside the chamber will be Teflon coated to avoid any contamination.

Total 9 numbers of 1000 W elements will be distributed in the circle in such a way to spray the rays all over the area equally.

S.S. Grill to the Heater Bank ensures operator's safety as well as safety to I.R Elements

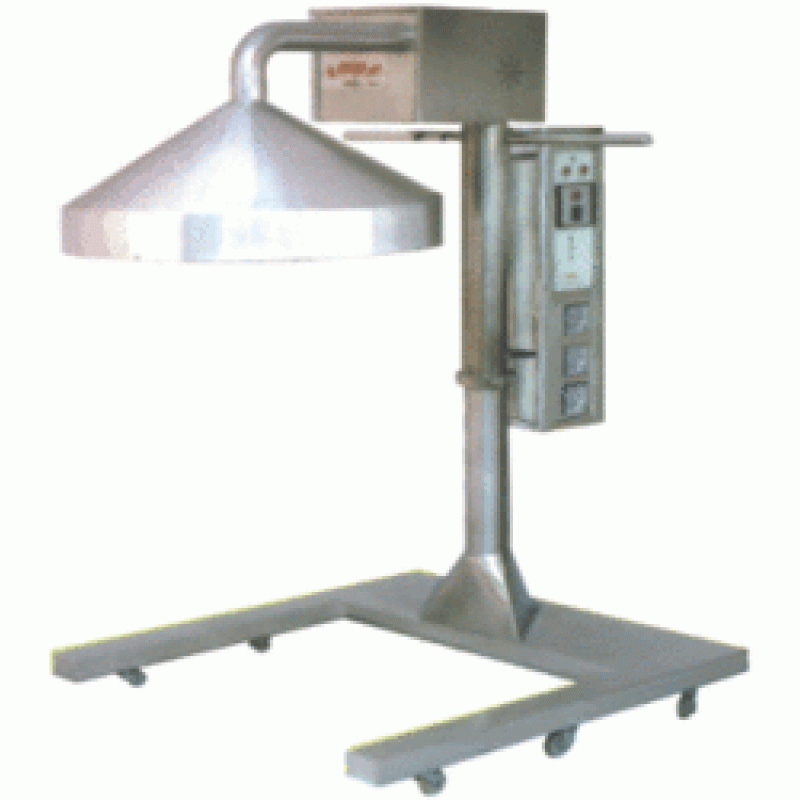

The equipment to be dried is kept underneath the dome of Infra Red Dryer Umbrella Type.

Total Mechanical Lifting arrangement of 400 mm is given for lowering or raising the

Dome of Umbrella type I.R. Dryer.

The drying of equipment is faster, economical & without causing any particulate contamination to the equipment that is being drying, unlike conventional methods of drying.

Unlike Ultra violet rays, which are harmful to human body & eyes, on direct exposure, Infra red rays are absolutely safe on these fronts.

Economic heating & drying is a high degree of efficiency in the transmission of energy from the infrared sources to the object. A high degree of efficiency is dependent on the emission power and "appropriate" wavelength of the emitted infrared radiation.

Additional Information:

• Item Code: UIRD1000
• Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
• Delivery Time: Product will be deliverd in 25 days
• Packaging Details: The product is packed in Boxes.
