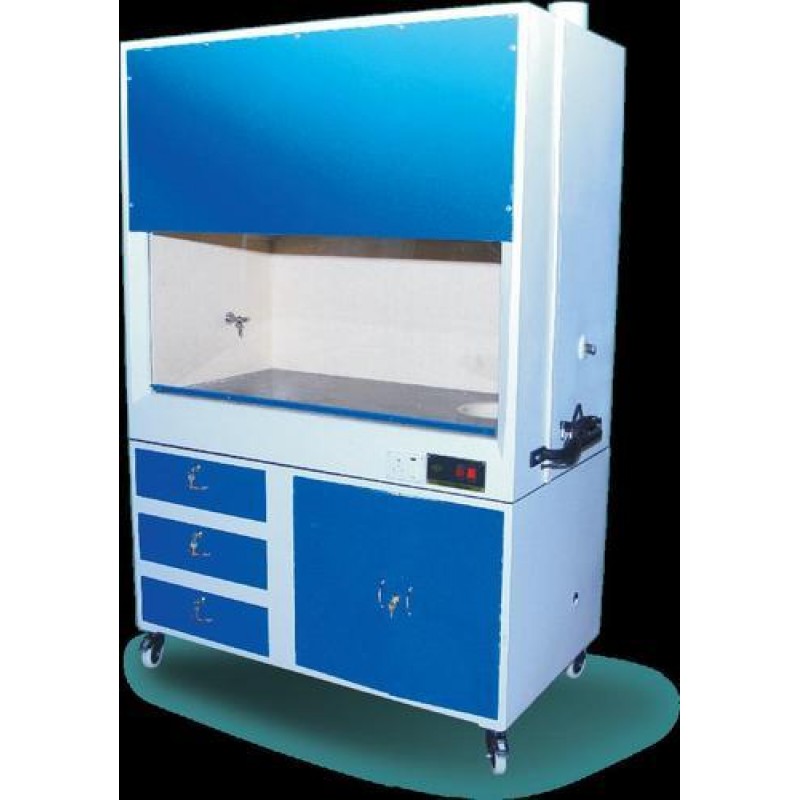

Fume Cupboard (Fume Exhaust Hood)

Product Details :

These are designed to exhaust toxic and other harmful vapours, for protecting laboratory personnel and equipment.  The main body of the Fume Cupboard is made of good quality Marine Plywood with water and chemical proof epoxy painted/mica and inside of the cup board is made from FRP lining, which is acid or alkali resistant, fitted with a sliding door made of acrylic, moves vertically up and down with counter balanced weight operated by Chain and sprocket.  Fluorescent light is provided inside the chamber for easy working.  One SS zinc of small size, water tap and gas cock are also provided inside the chamber.  Working top of the fume cupboard is of Granites /Stainless Steel Sheet, which is acid or alkali resistant. A major blower exhaust system [1/4 HP AC motor - 2880 Rpm] fitted on the top of the working area, which generates negative pressure within the hood extracting the contaminated air from the work area and expelling into the atmosphere and preventing the fume escaping into the room .For this purpose there is provided a provision for connecting 4"dia PVC pipe on the top of the instrument.  Beneath the working area, fitted 3 drawers on one side and a closed storage area with a provision for locking system on the other side of the unit.

Table Top Model [Same as above but without Bottom Part ]

Note: 1) MS fabricated unit with auto painted [instead of marine plywood] can be supplied on specific order.

           2) Fabrication with special dimensions can be supplied on specific order
