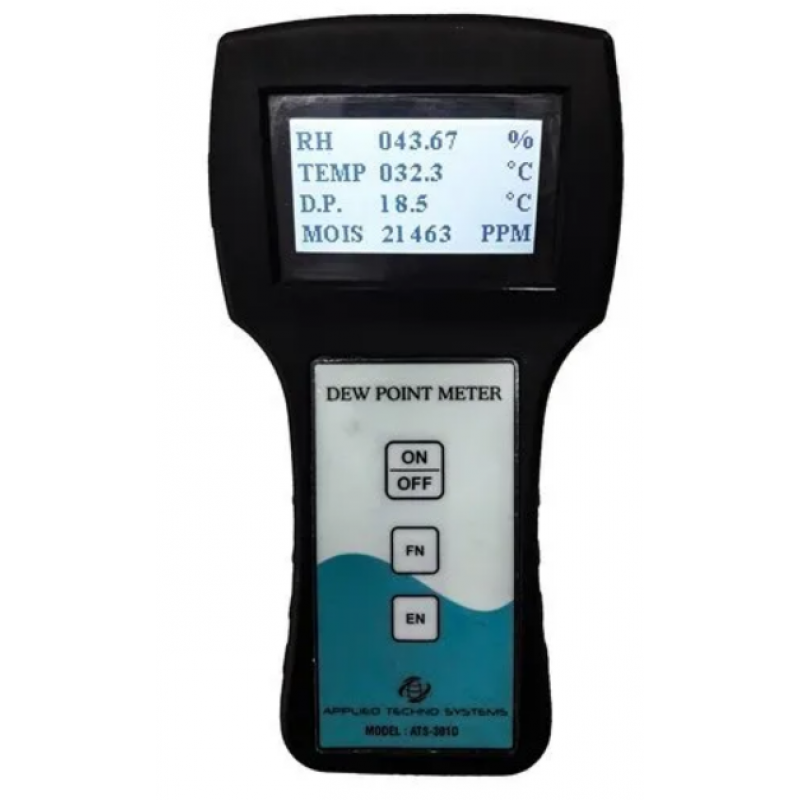

Black Colour Portable Dew Point Monitor

Product Details:

Brand	Applied Techno Systems
Application	Industrial
Accuracy	+/- 2%
Material	ASB Plastic
Color	Black
Operating Humidity Range	< 85%RH
Size/Dimension	130 X 250 X 90 mm (W x H x D)
Display Type	LCD Display
Country of Origin	Made in India

Black Colour Portable Dew Point Monitor are designed to measures dew point,Moisture and temperature faster and accurately over a wide measurments range. It is highly optimized to measure the dew point, moisture and Temperature for dryers and compressed air/gases. Periodic monitoring of industrial Air sytems results in a reduced maintenance cost & down time caused bycondensate, the leading cause of corrosion in pneumatic systems. Air or Gas samples up to 12kg /cm2 pressure and temperature up  to 75 deg C  can be directly measured. For higher temperature applications. a Heat sink tubing can be used. The meter can also be connected to a vacuum pump forsampling from systems at low or atmospheric pressure. Measures the dew point precisely by utilizing a highly reliable microprocessor based electronic circuit to convert the sensor signal by the use of psychometrics equations. Assembled in a ABS plastic housing, it sensor mainfold with an orifice that means line pressure for true pressure dew point readings.
Application:

• Dryer & Compressed Air

• Process drying & Laboratory Analysis

• Light bulb manufacturing

• Industrial gas manufacturing

• Heat treatment

• Petrochemical / Petroleum industry

Specification:

• Principle : Capacitive Thin Film Polymer

• Dew Point range: -60 deg c to + 30 deg c (Standered), -80 deg c to +30 deg c (Optional)

• Accuracy: 0 deg c to  + 30 deg c = +/-1 deg c

• Response time: 10 seconds for 63% step change

• Display: 128x64  Graphics LCD

• weight : 450 gm

• Additional features (Optional)

• Computer interface : RS-232 link for Data in ASCII Delimited Format, 9600 Baud, 8 Bits , 1 stop,1 start, No Parity.

• Data Logger: 32 Kbyte , Non-Volatile Memory.
