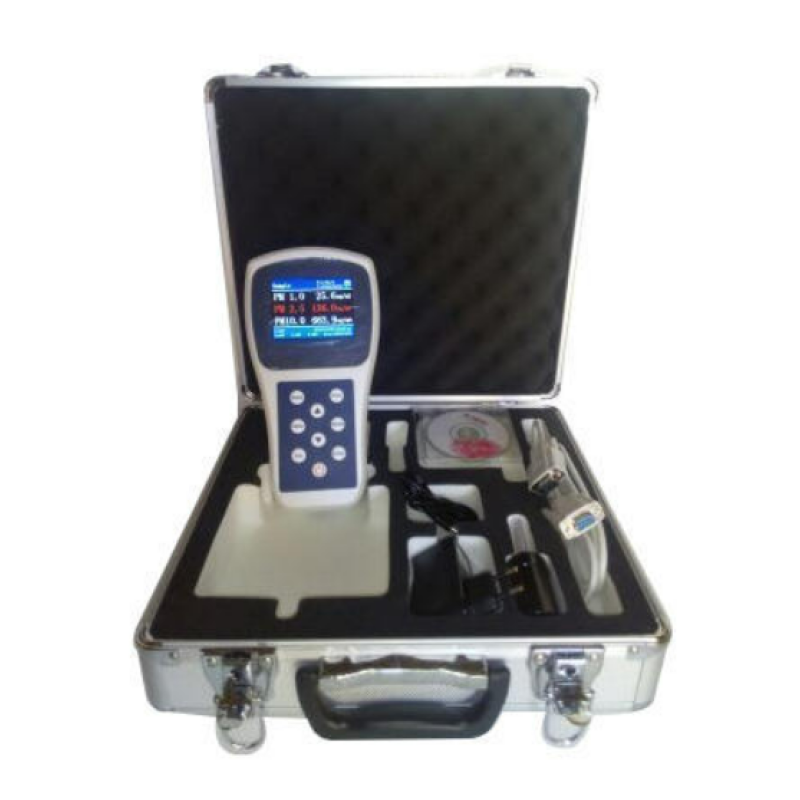

ATS-110M Air Quality Monitor

Product Details:

Usage/Application	Industrial, Commercial
Brand	Applied Techno System
Accuracy	+/- 2%
Material	PVC Plastic
Dimension	130 (W) X 220 (H) X 45 mm (W x H x D)
Country of Origin	Made in India
Range	PPM/PPB or mg/M3
Response Time	<5 Second
Flow Rate	2.84 L/M
Sensor Life	2-3 Years
Humidity	< 85%RH

Our sensor-based instruments and air quality monitoring systems ATS-110M Air Quality Monitor are used to industrial hygienists, occupational health and safety personnel and indoor air quality professionals to assess air quality in the workplace in accordance with state and national guidelines. We provide a wide range of meters, Monitors and probes for use in indoor air quality studies to test for parameters and contaminants such as:

• CO, CO2, SO2, NO2,NH3,H2S

• Formaldehyde (HCHO), Ozone and VOC’s

• Particulates PM10, PM2.5 PM1.0

• Handheld/Portable PM Monitor is used to monitor the suspended Particulate concentration in the air with measuring range 0.001mg/M3 to 10 mg/M3. It adopts optical scattering technique. This type of Product has many advantages, such as fast detection speed, high accuracy, light and small, easy operation, measuring and displaying of 3 channels at the same time. It adopts the method of automatic measurement, improving the work efficiency effectively.

Specifications:

Principle	Electrochemical and Light scattering
Range	PPM/PPB or mg/M3
Resolution	0.1 Unit or 1 Unit (Application based)
Sampling Method	Diffusion, Auto Suction or Direct Plug In
Display	128 X 64 Graphics LCD
Alarm	Two Levels Low & High, Visual and Audible
Power Source	Built in Lithium Rechargeable battery
Accuracy	/2%
Response Time	<5 Second
Flow Rate	2.84 L/M
Data Storage	1000 or 10000
Sensor Life	2-3 Years
Operating Time	6 – 8 hours
Environmental
Temperature	15degree Celsius
Humidity	< 85%RH
Atmosphere Pressure	86- 106Kpa
Housing	High Impact Plastic
Dimension in mm	130 (W) X 220 (H) X 45(D)
Weight	0.6 KG
Warranty	One Year
