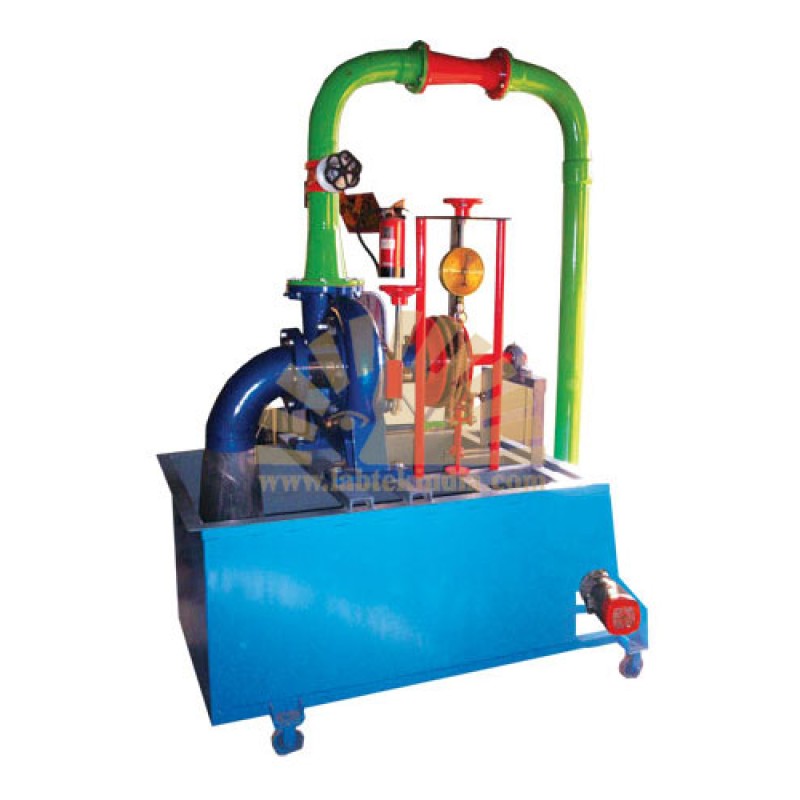

Francis Turbine

Type

: Inward Flow Reaction Turbine

Capacity

: 5HP

Rated Speed

: 1250 RPM

Discharge Capacity

: 1800 Liters/Minute

Supply Head

: 25 Meters

Guide Vanes

: Gun Metal Vanes (Aerofoil Blade Shaped)

Loading

: Rope Brake

Material

: Cast Iron

Drum Size

: 300 mm diameter

Supply Pump Set

Size

: 4” X 4”

Discharge

: 1800 Liters/Minute

Total Head

: 30 Meters

Motor Capacity

: 15 HP

Make

: CRI/Sugna/Coimbatore

Starter for Motor

: Star Delta-TC/Crompton Make

Flow Measurement

Venturimeter

: C.I Body

Manometer Fluid

: Mercury

Pressure Measurement

: Pressure & Vacuum gauge

RPM Indicator

: Digital

Sump Tank

Material of Construction

: MS Powder Coating /M.S. FRP Lining/S.S Unit

Service Required

: Electrical supply-15 HP,
3Phase, 440 Volts,
50HZ AC Supply
