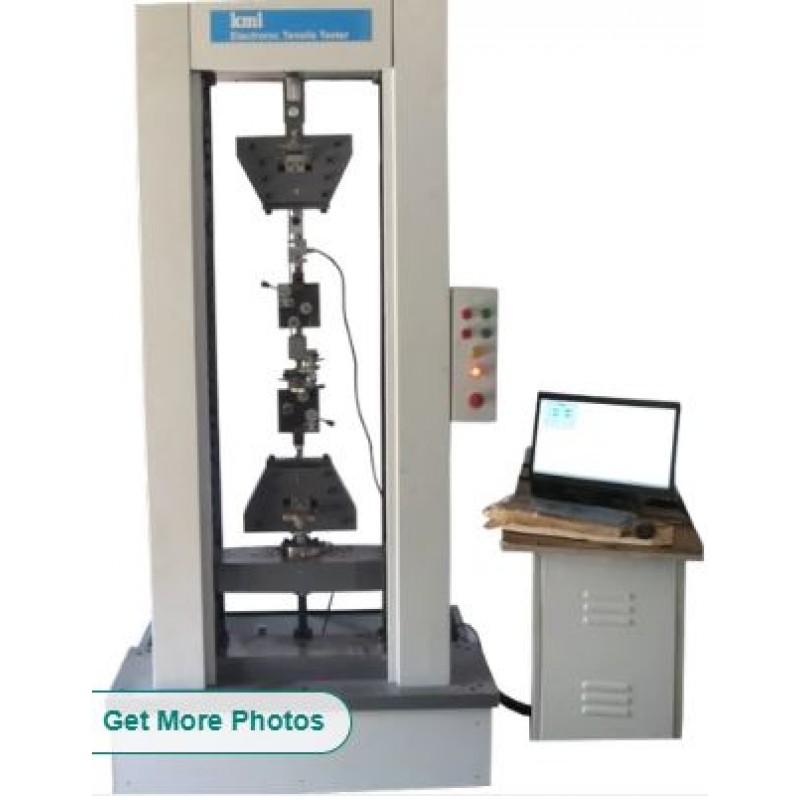

Rubber Testing Equipment
Product Details:
Brand | KMI |
Material | Rubber |
Display | Computerized |
Voltage | Single |
Capacity | Upto 1 KN (Max) |
Brand | KMI |
Power | 230 volts +/- 10%, 50 Hz AC Mains |
Accuracy | +/- 1% AS per IS 1828 |
• We provide Rubber Testing Equipment with following features :-
• Mounted with motor, gear reduction, and arrangement to move cross heads up and down.
• Variable speed drive, PLC, MMI and End limiting switch etc. As and when required, easy to select constant rate load (CRL) all constant rate elongation (CRE) shall be provided
• Maximum gap between process shall be 500 mm
• Facility to plot stress / strain Graph
• Suitable jaw shall be provided to hold the samples and jaw faces shall be smooth and parallel. Requirement of load cell.
• Range 1 to 10 N
• Accuracy - ± 0.5% FSD
• Range 10 to 100 N
• 100 to 1000 N
• Accuracy - ± 0.5% FSD Digital Load Indicator While using above load cells, the resolution shall be as under.
• For 10 N resolution is 0.01 N
• For 100 N resolution is 0.1 N
• For 1000 N resolution is 1 N Control Panel Facility to mount PLC, MMI and Control Switches with safety features like end limit switches, emergency push button and pilot lamp etc., Miscellaneous
• Facility to measure load 1 KN Max with resolution of 1 N
• Facility to Measure the deflection with resolution of 0.005 mm.
• Shall be provided with user manual to operate the equipment.
• Variable speed drive, PLC, MMI and End limiting switch etc. As and when required, easy to select constant rate load (CRL) all constant rate elongation (CRE) shall be provided
• Maximum gap between process shall be 500 mm
• Facility to plot stress / strain Graph
• Suitable jaw shall be provided to hold the samples and jaw faces shall be smooth and parallel. Requirement of load cell.
• Range 1 to 10 N
• Accuracy - ± 0.5% FSD
• Range 10 to 100 N
• 100 to 1000 N
• Accuracy - ± 0.5% FSD Digital Load Indicator While using above load cells, the resolution shall be as under.
• For 10 N resolution is 0.01 N
• For 100 N resolution is 0.1 N
• For 1000 N resolution is 1 N Control Panel Facility to mount PLC, MMI and Control Switches with safety features like end limit switches, emergency push button and pilot lamp etc., Miscellaneous
• Facility to measure load 1 KN Max with resolution of 1 N
• Facility to Measure the deflection with resolution of 0.005 mm.
• Shall be provided with user manual to operate the equipment.
