Injection Grouting Machine
Product Details:

Automation Grade	Automatic
Capacity	900 ML PM
Model Name/Number	HC-25
I Deal In	New Only
Discharge	UPTO 900 ML PER MINUTE
Gross Weight	APPX 10KG
Material	STEEL
Max Output Pressure	UPTO 4000PSI
Pipe	5MTRS LONG

Harjai And Company Professional Electric Injection Pump - Durable, Drill Operated, Light Weight

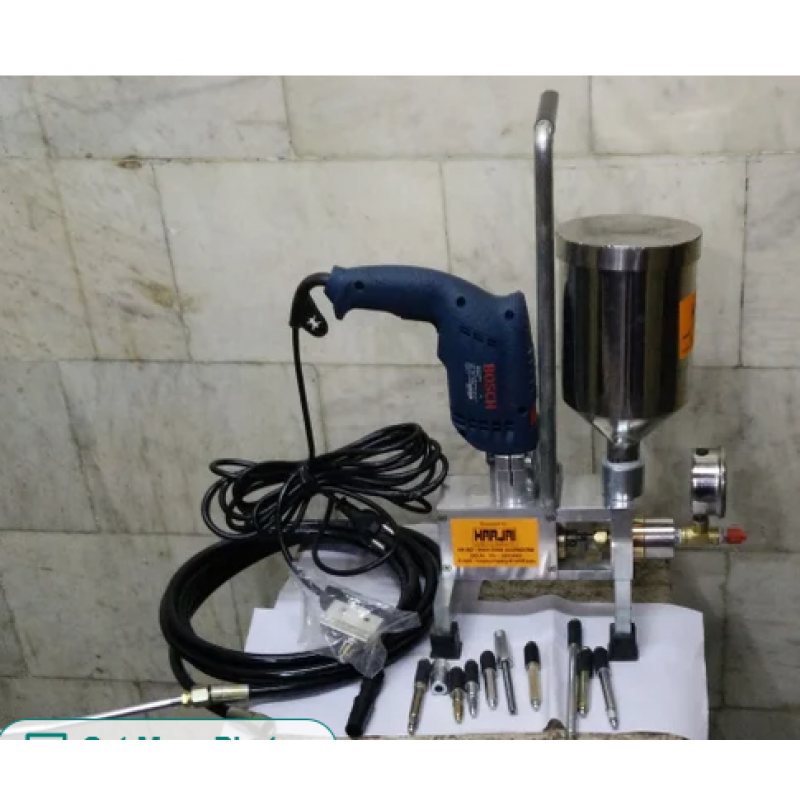

Harjai Professional Pu/epoxy Injection Machine Consists Of:
Bosch Drill Machine Gsb-10 With 1 Year Warranty.
Stainless Steel Ss 304 Hopper With Lid
Glycerine Filled Pressure Gauge Spanco Germany
5 Mtr Factory Crimped Polyhose R7 Thermoplastic High Pressure Hose Of Capacity 2750 Psi(190 Bar) Sae 100
Factory Fitted Piston Of Usa
1 Coupler, And Extra Repair Kit
1,japanese Pressure Switch To Bypass The Drill (enhances Life Of Machine) + Cable With 6amp Plug

Gross: 9.00 Kg
Max Output Pressure: 11000 PSI Star-up: < 7500 PSI
Safety Scope of High-pressure pipe: < 14000 PSI
Safety Scope of On-off Valve: < 18000 PSI
Safety Scope of Butter Head: < 16000 PSI·
Standard Specification:
Machine Body
5 meters high pressure pipe
Switch Valve Suit(including Butter Head)
Electric Drill Machine
Maintenance Saddlebag.
Discharge-0.9 pm.
Single line discharge for pre-mixed resins
Light weight & simple operation
Remote switch operated
Easy flush after usage·


Application Scope:
· For the crack, flexing crack, construction crack, and instruction crack of building and concrete project.
· Cracking of building, girder, pole, board etc. structure, inject epoxy resin with high-handed
· Leak stopping for underground, tunnel, culvert, sewage disposing pool, concrete fissure
· Leak stopping for floor, wall pipe, and wall corner
· Grouting of reservoir and dam for the water conservancy project, leak stopping of the water transporting tunnel, seepage control of the concrete crack of the embankment.
· Leak stopping for basement, underground garage, and underground channels
· Leak stopping for the breast wall of artesian well in geologic drilling project
· Pressure Flow 10000 PSI
· 90 Liters/Minute Power Supply for Gulf 220V
