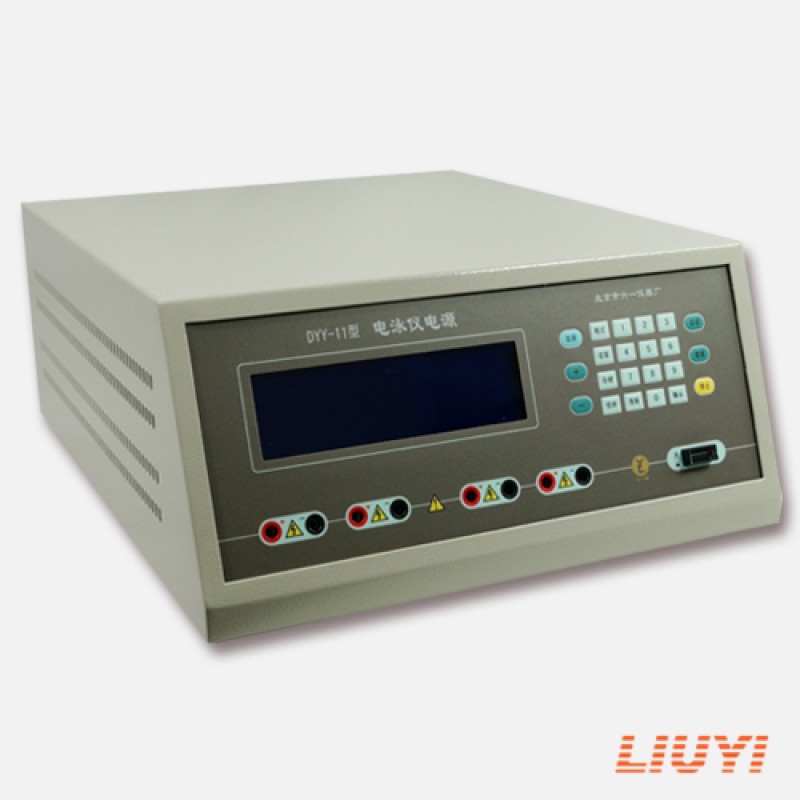

DYY-11 Electrophoresis Power Supply

Model: DYY – 11 (Cat. No.: 113-1100)

Features:

• We adopt the microcomputer processor as the control center of the electrophoresis power supply, LCD.
• High-powered ON/OFF switch is the output core of the electrophoresis power supply. High output power, high capability of load, high precision of the control and the high stability of the function;
• It can work in the constant state of voltage, or in the constant state of electric current. And it can be converted automatically according to the pre-assigned parameters for different needs;
• DYY-11 has the protection functions of over voltage、short circuit, overload, sudden load change, unloaded , leaks electricity, etc.;
• DYY – 11 has the function of memory for convenient use and programming with a minimum of time and effort;
• Four groups of shunt-wound output terminals;
• It can memorize and store nine groups of nine steps of programs that you edited;
• Parameters can be adjusted finely during the running;

Application:

It is suitable for the ordinary protein electrophoresis or nucleic acid electrophoresis.

Specifications:

• Power requirement:A.C. 220V±10% (50Hz ±2% );
• Input power: about 500 VA;
• Output voltage: (4-1000)V (Increase or decrease: 1V/step);
• Output current: (4-500) mA (Increase or decrease: 1mA/step);
• Output power: (4-300) W (Increase or decrease: 1W/step);
• Stability: constant voltage ≤1%; constant current≤2%; constant power ≤3%;
• Adjustment rate:constant voltage ≤2%; constant current ≤3%; constant power≤5%;
• Size(W x D x H): 303 x 364 x 137 (mm);
• Weight: about 7.5 kgs.
