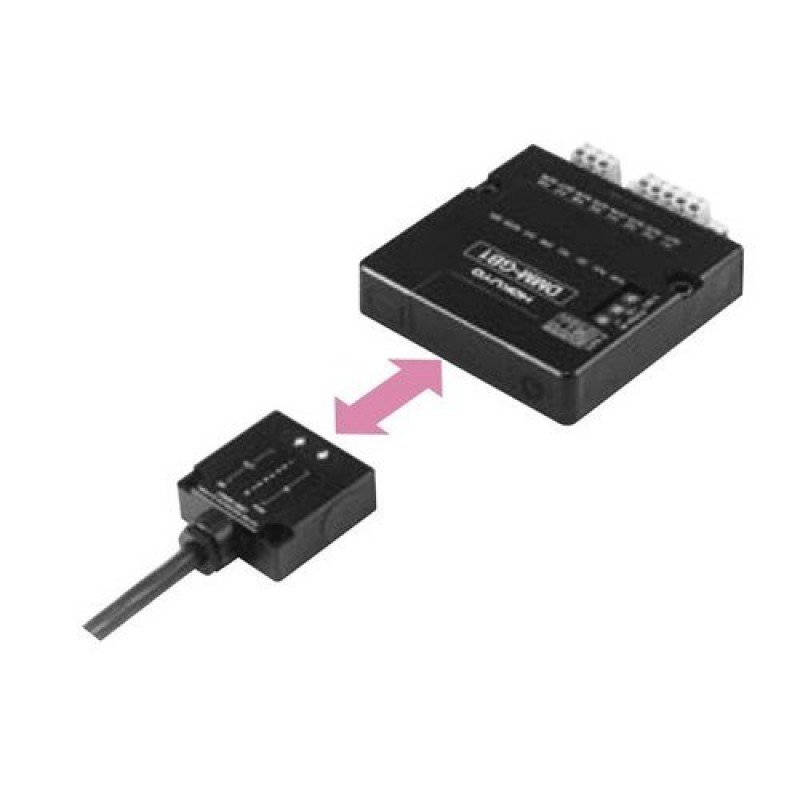

DMM Optical Data Transmission Device For CC-Link

Product Details :

Transmission direction	Head-on,Side-on
Power source	18 to 30VDC
Current consumption	70 mA or less at 24 V
Transmission distance	0 to 3m x2
Directional angle	Total 30 Degree
Transmission capacity	16 BIt
Transmission method	Half duplex two-way transmission
Transmission time	Approx. 40msec
Modulation method	Pulse modulation
Detection method	Parity check
Communication speed	10Mbps /5Mbps/2.5Mbps/625kbps/156kbps(Changeover by switch)
Transmission path	RS 486 Bus
Weight	110 GM

Other Details:
DMM-G/H
Direct connection to CC-Link
This device, 8 bit parallel type is able to connect directly to CCLink system.
·         It is possible to communicate with DMS-G/HB & DMG-G/HB.
·         Easy connection, connector type.
·         It is possible to connect maximum 64 units to one master unit
