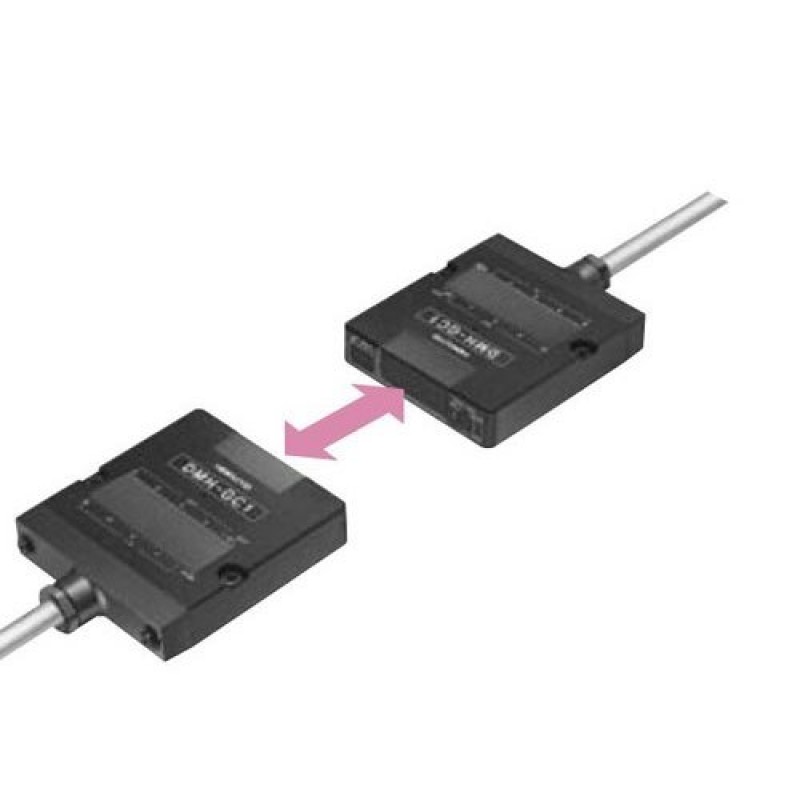

DMH Optical Data Transmission Device

Product Details :

Serial	Parellel
Model	DMH-GC1-L
Transmission distance	0-15 m
Direction	Head on
Directional angle	2 Degree
Transmission capacity	16 Bit
Transmission method	Half duplex two-way transmission
Transmission time	15msec or less
Detection method	Bit reverse comparing system
Power source	18V to 30VDC
Current consumption	150 mA or less
Ambient illuminance	10,000lux or less
Ambient temperature/humidity	-10 to +5 Degree , 85%RH or less
Weight	400 GM
Protective structure	IP 64

Other Details:
·    DMH-GC/H C is a high speed type data transmission device with 16 bit. This is smaller size and lighter weight than usual models and also, adjuster for beam       amount is provided.
