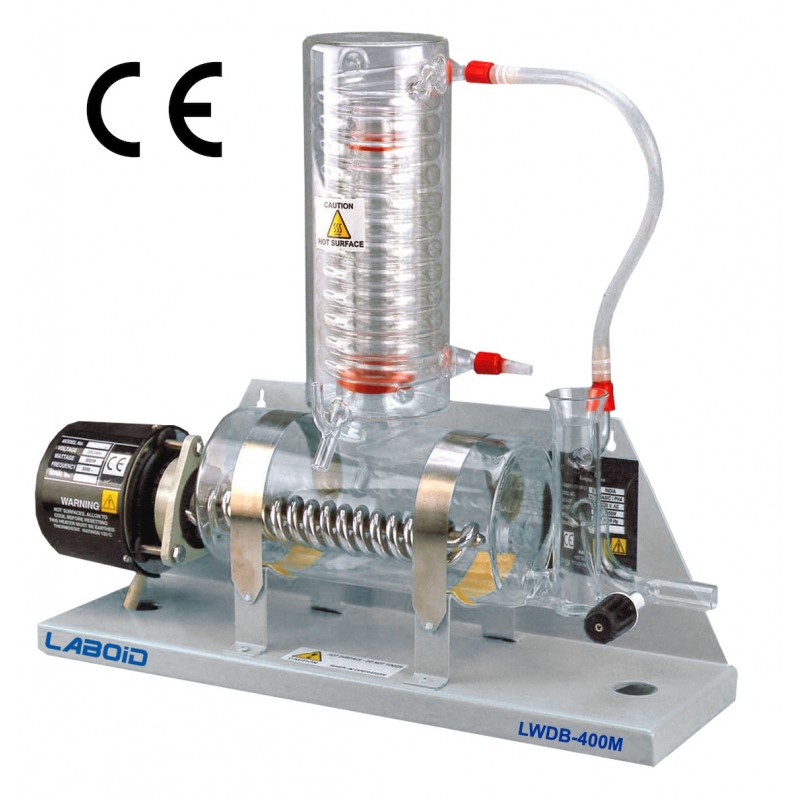

Water still – LABOID – 400M models are designed for reliable continuous operation incorporating a host of features unmatched by comparable stills. It is easy to use, safe to operate, thoroughly reliable and above all Low Cost.

Features•    Abundant Out put.The still provides, 4 litres/hr of distilled water produced through a power input of   3KW by a chromium plated heater housed in a horizontal Glass Boiler

•    Distilled output is cool ensured by a high efficiency condenser. Temperature of distillate 25o C – 40o C tested for ambient room temperature of 30o C.

•    All units carry Marking.

Distillate Quality •    Ideal for general Laboratory use- capable of producingpyrogen free water.

TECHNICAL SPECIFICATIONS:

Output

4 litres/hr, single distilled

pH

5.0 - 6.5

Conductivity, µScm-1

3.0 - 4.0

Resistivity, mOhm-cm

0.25 - 0.3

Temperature

25 - 35°C

Pyrogen content *

Pyrogen free

Water supply

1 litre/min, 3 - 100psi, (20-700kPa)

Electricity supply

220 or 240V, 50-60Hz, single phase

Power requirement

3kW

Dimensions, (w x d x h)

500 x 500 x 450mm

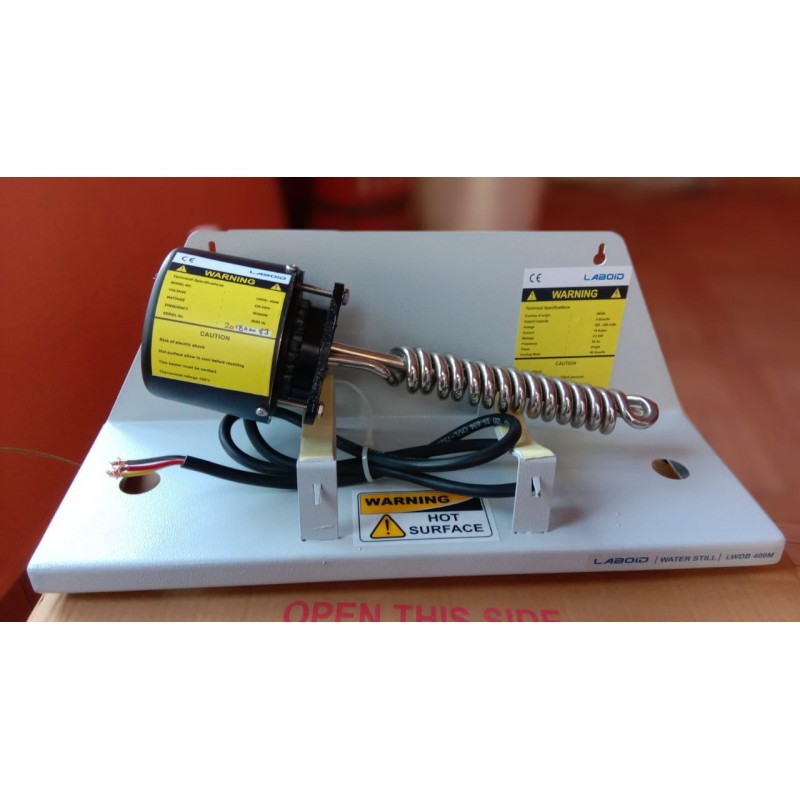

Construction•    The stand is powder coated for long rust free Operation.•    Heater is a 3KW Chromium plated heater fitted with a  thermostat, which shuts off automatically in case of water supply failure.•    The Boiler & Condenser are designed for high efficiencyand provided with threading for easy plumbing of condenser.•    Boiler is provided with Teflon screw cork for insitu cleaning of the boiler.•    All plumbing connections to the equipment are made via screw thread connectors
