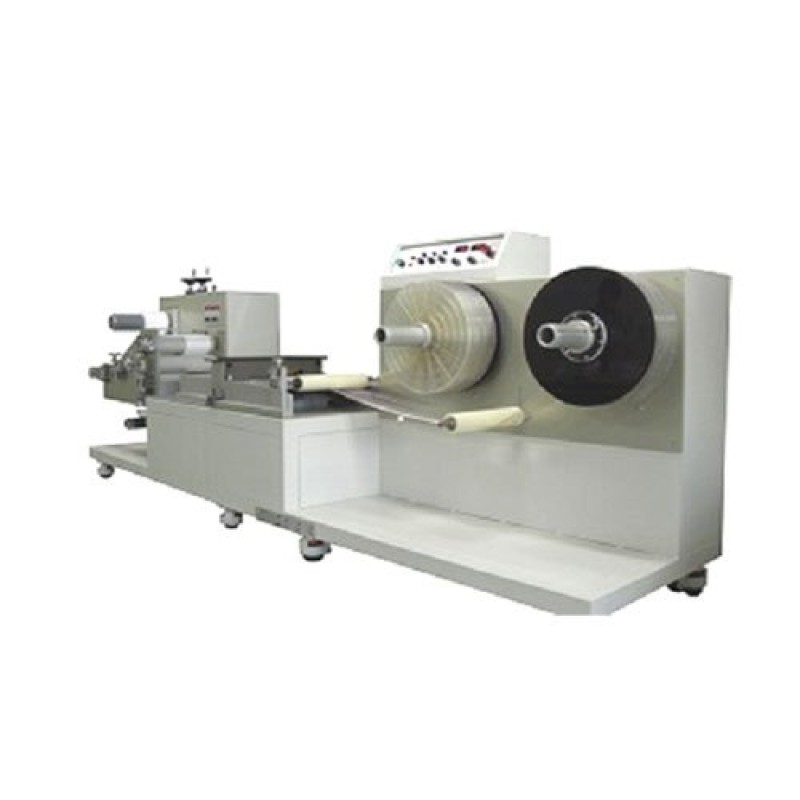

SMU-300 Tape Laminator And Multi Slitter

Product Details :

 Description:

• SMU-300 is an automated laminating (tape) and slitting system developed for converting a wide membrane roll stock (pre-treated) into multiple splits of adhesive-ready membrane strip rolls.

• The system works by first laminating double-sided tape onto the wide membrane roll, then splits the wide roll into a number of narrowed widths, and then are re-wound into individual reels to finalize the process.

• The finished rolls are now ready for the next mfg. phase of Membrane Lamination onto Backing.

• The entire process is done automatically and mechanically for maximum production efficiency, and product quality.

FEATURES OPTIONS :

• Simultaneous taping & splitting process for production efficiency and low material-loss
• Can handle up to 270 mm width and 100 m long membrane roll
• Air shaft equipped to make reel loading/unloading quick & easy
• Mechanical tape lamination reduces contamination factors
• Adjustable cutting speed allows for convenient and flexible operation

Additional Information:

• Delivery Time: 30 DAY
