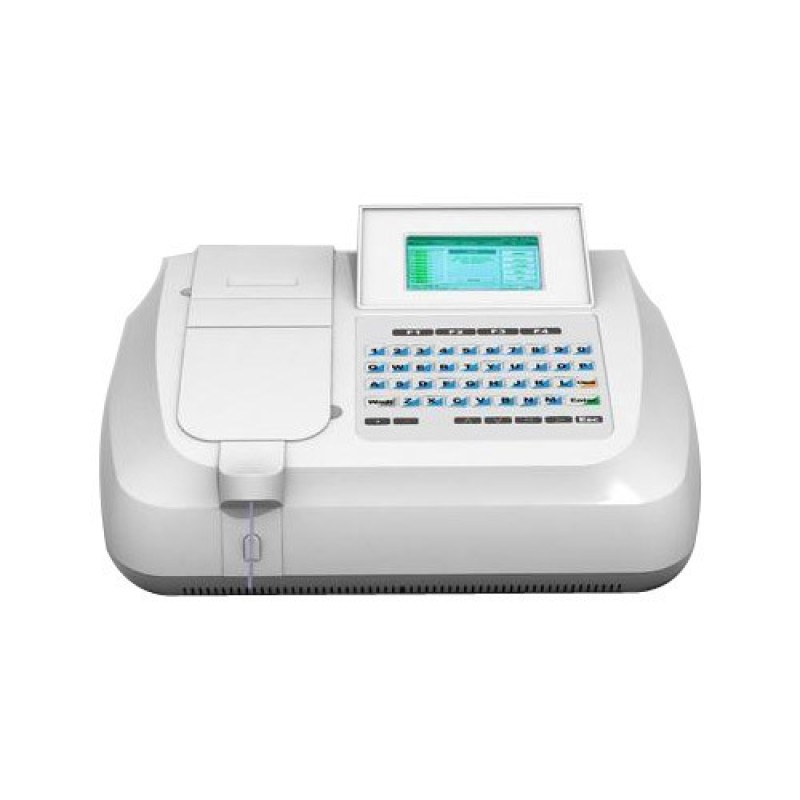

The Bio-Chemistry Analyzer is mainly used for the quantitative analysis of the clinical bio-chemical items; it applies the lamber- beer law: A=kbc=lg(i0/i).

Among them:

a: absorbency, k: aspirated index, b: liquid layer’s thickness, c: solution’s consistency, i0: incident light’s strength, i: transmit light’s strength.

According to the above formulas, under the condition of the certain liquid layer’s thickness and incident light’s strength, as long as test the strength of transmit light which goes through the liquid, so we can calculate the consistency of the solution.

Technical parameters condition for operation

• Temperature: 10°C-35°C
• Relative humidity: 20 – 90 %.
• Power: 85-264V

Conserved Transportation Condition:

• Temperature: 0°C-40°C
• Relative humidity: 10%-90 %.

Technical parameters:

• Method: kinetic.
• End-point, linearity, plus time, non linearity plus time, absorbency, sample blank, multi-standard, velocity, calculation, two-point, double wavelength etc.
• 7 wavelengths optic system avoiding outer disturbance.
• Wavelength range: 340-700nm
• Quality control: quality control for all tests, statistic and print quality control parameters automatically with QC curves. Every test can do high medium low three groups quality control.
• Program: add or delete test items easily according to the condition. Modify the test parameters. Display dynamic curves at real time.

• 8 standard curves at most in testing with multi standard method.
• Test items: ≥200filter
• Wavelengths: 340. 380. 405. 505. 546. 578. 620nm, 1 empty position wavelength
• Precision: ±2NM.
• Photometric range: -0. 2 – 2. 3 abs.
• Flow cell: quartz .
• Measure volume 32ULL
• lamp: quartz-halogen lamp, 6V 10W.
• Liquid thickness: 10mm.
• Screen: 240×128 dots graphic LCD.
• Output: inner thermal printer or external parallel printer optional Out-printer: print A4 paper result report. Thermal paper dimension: diameter 35mm,width: 78mm(3inches)aspirating samples
• Volume: ≥ 500UL,
• Adjustable memory: 500 samples or quality controls. ≤30 tests per sample.
• Communications connector: RS-232 serial.
• Dimension: 33cm in length×35. 5cm in width×12. 59cm in height
• weight: 8kg.
