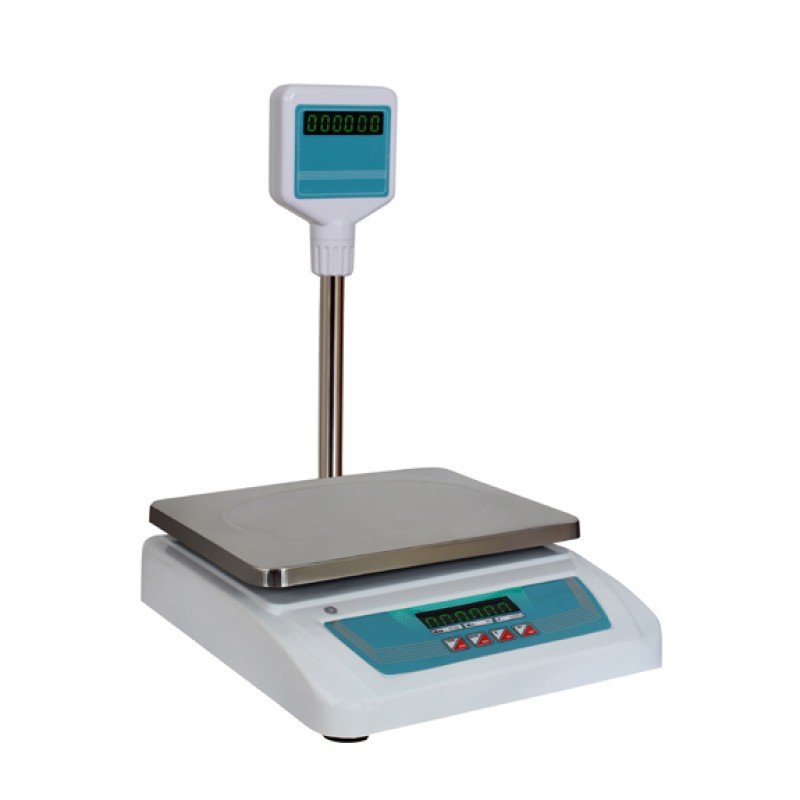

Table Top Scale 01

Product Details:

Table Top Scale 0

•     Soft Touch Tactile Switches
•    Quick Response Time
•    Tare Facility with Zero Function
•    LED Display
•    Top and Bottom Metal Body
•    Easy to Operate, Compact Design

Technical Features

•    Over load protection
•    Weather & water proof sophisticated tactile keyboard
•    High accurate load cell
•    Approved by weight & Measurement Dept. Govt. of Gujarat
•    12 to 15 w power consumption.
•    230 V ± 10% 50Hz volts AC.
•    2Operating Temperature Range 0°C to 50°C

Options

•    Extra/Remote Display
•    Printer/Rs 232 Interface

MODEL	CAPACITY	E VALUE	PLATFORM SIZE (mm)
Se01 / SE05	1 Kg.	0/100 mg.	175 x 225	170 x 210	-
Se01 / SE05	2 Kg.	100/200 mg.	175 x 225	170 x 210	-
Se01 / SE05	5 Kg.	0.500 mg.	175 x 225	170 x 210	240 x 300
Se01 / SE05	10 Kg.	0.5/1 g.	175 x 225	170 x 210	240 x 300
Se01 to Se07	20 Kg.	1/2 g.	175 x 225	170 x 210	240 x 300
Se02 to Se04 & Se06 & 07	30 Kg.	1/2/5 g.	-	240 x 300	250 x 300
Se02 to Se04 & Se06 & 07	40 Kg.	2	-	240 x 300	250 x 300
