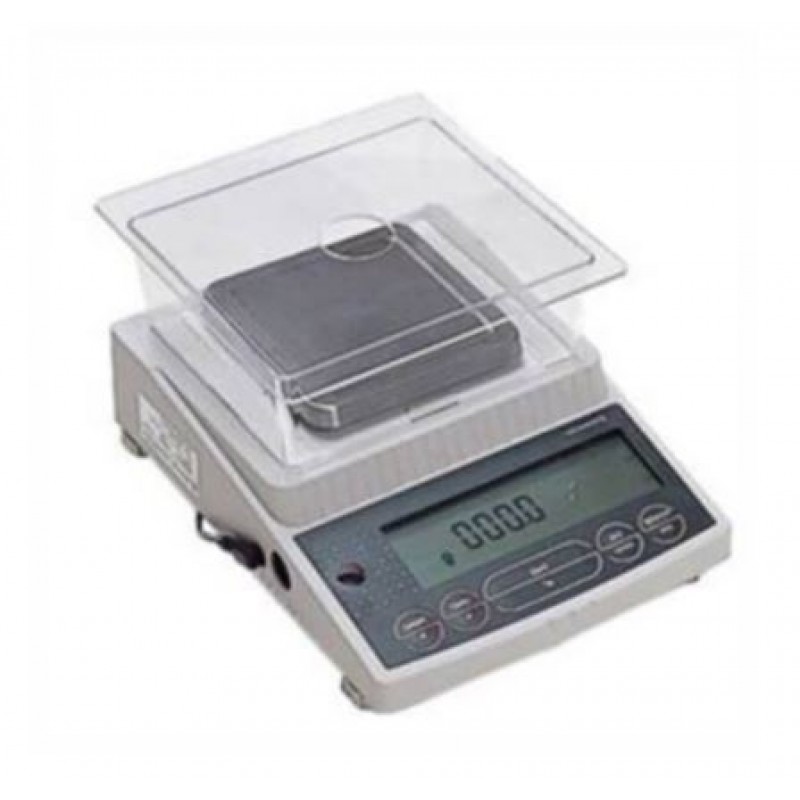

Shimadzu BL220H Series
Description
Features :
Quick Response
- Very fast response for operator comfort and efficiency.
High Stability
- Even if the environmental conditions are not ideal for precision weighing, the high stability mode of BL Series produces steady readings.
Piece Counting function
- Piece counting function is standard.
Analog Bar Graph Display
- Remaining weighing capacity can be seen at a glance.
Easy Unit Conversion
- Switching between various units is by simple key-touch.
- This electro-magnetic precision balance is as compact as a portable scale.
Specifications :
BL SERIES | |||
|---|---|---|---|
| Model | Capacity | Minimum display | Pan size (mm) |
BL220H | 220g | 0.001g | 100 x 100 |
BL320H | 320g | 0.001g | 100 x 100 |
| BL320H | 2200g | 0.01g | 160 x 124 |
| BL3200H | 3200g | 0.01g | 160 x 124 |
| BL3200HL | 3200g | 0.01g | 160 x 124 |
| BL320S | 320g | 0.01g | 100 x 100 |
| BL620S | 620g | 0.01g | 160 x 124 |
| BL3200S | 3200g | 0.1g | 160 x 124 |
Technical Specifications :
| Volts | 12 V DC |
| Repeatability (Std. Deviation) | </=0.001gms |
| Linearity | +/-0.002gms |
| Response Time | 1.0-1.2 secs. |
| Operating ambient Temp. | 5 to 40 Deg.C |
| Temp. coefficient of sensitivity (10 to 30 Deg.C) | +/-3ppm/ Deg.C |
| Pan Size | 100 x 100mm |
| Body Dimensions | 170Wx 240D x 75Hmm approx |
| Weight | 2.2kg approx |
| Power Required | AC adapter; 90V-264V, +/-10%, 50/ 60Hz |
| Standard Accessories | Simple windbreak, Protective in-use cover |
| Display | LCD Display |
