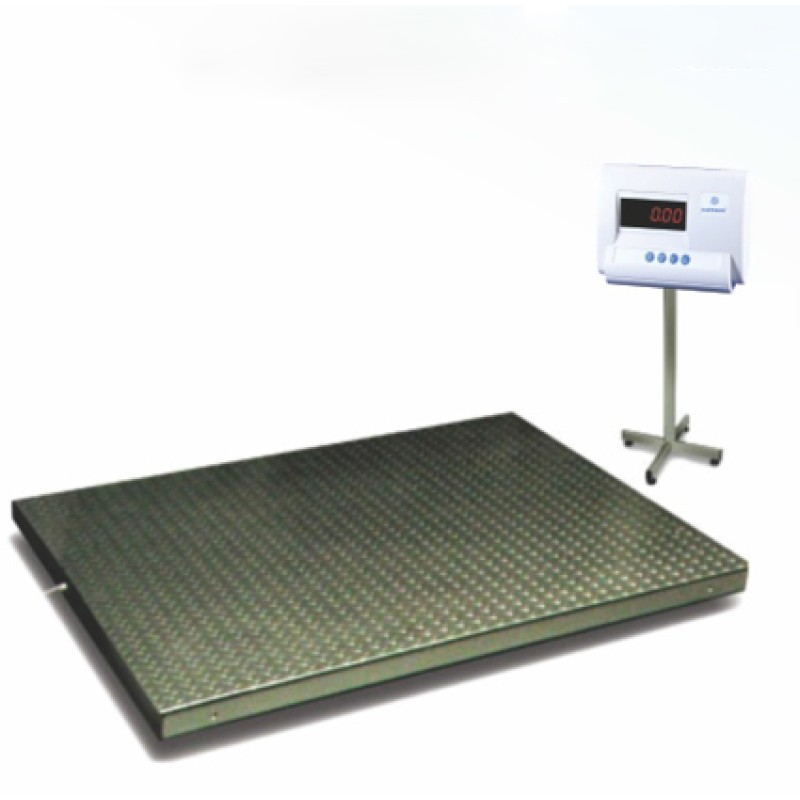

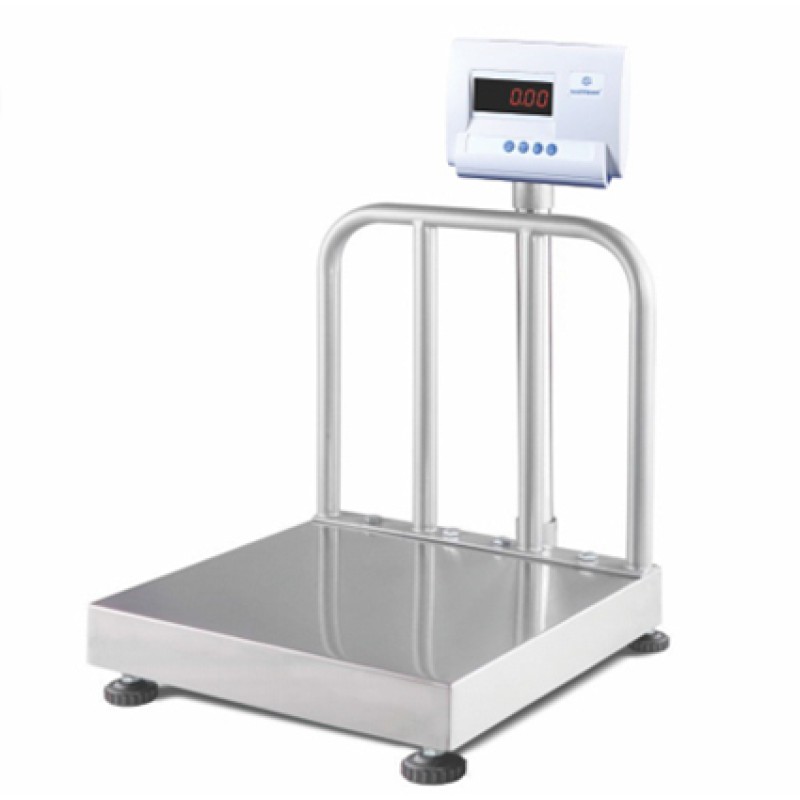

Platform Scales
Product Details:

MODEL	SES5OP	SES100P	SES200P	SES300P	SES500P	SES1000P
CAPACITY	50 kg	100 kg	200 kg	300 kg	500 kg	1000 kg
READABILITY	5g	10 g	20 g	20 g	50 g	100 g
Platform Size (mm)	400 x 400	500 x 500	600 x 600	600 x 600	750 x 750	750 x 75

MODEL	SES500P4L	SES1TP4L	SES2TP4L	SES3TP4L	SES5TP4L
CAPACITY	500 kg	1000 kg	2000 kg	3000 kg	5000 kg
READABILITY	50 g	100 g	200 g	300 g	500 g
PAN SIZE	750 x 750mm	1000 x 1000mm	1200 x 1200mm	1500 x 1500mm	2000 x 2000mm
DISPLAY	Large Red LED 1.2 inch	Large Red LED 1.2 inch	Large Red LED 1.2 inch	Large Red LED 1.2 inch	Large Red LED 1.2 inch
STRUCTURE	MS Coated Pipe/Angle	MS Coated Angle/Channel	MS Coated Angle/Channel	MS Coated Channel	MS Coated Channel
PAN	MC Coated	MC Coated	MC Coated	MC Coated	MC Coated

Standard Features :

• Bright RED Big LED Display for easy viewing
• High resolution up to 15,000 to 100000 counts.

• Optional Remote Display available for customer,
• Built-in rechargeable battery for continues use

• Auto external calibration facility
• Rugged construction suitable for industrial environment.

• Environmentally protected Load Cell. With temp. compensated
• Heavy MS pipe, Angle, C-channel fabrication with colour coatting.

• Safe overload protection 150% of full scale
• Ultimate Overload protection 200% of full scale

• Superior technology with micro controller base
• Power sources AC200+-10%, 50/60Hz

• Operating Temperature: +5°C to 45°C
• ABS Dye Casting Indicator with high contrast 6 digit red LED display

• Print facility indicator in smart weighing ( Optional )
• Remote Display available for customer ( Optional )

• RS232 & USB storage facility (Optional)
• Back rail support facility (Optional)

• Operating Temperature: +5°C to 45°C
• Bluetooth & WiFi facility (Optional)

• High/Low Indication (Optional)
