MOC63U
Product Details :

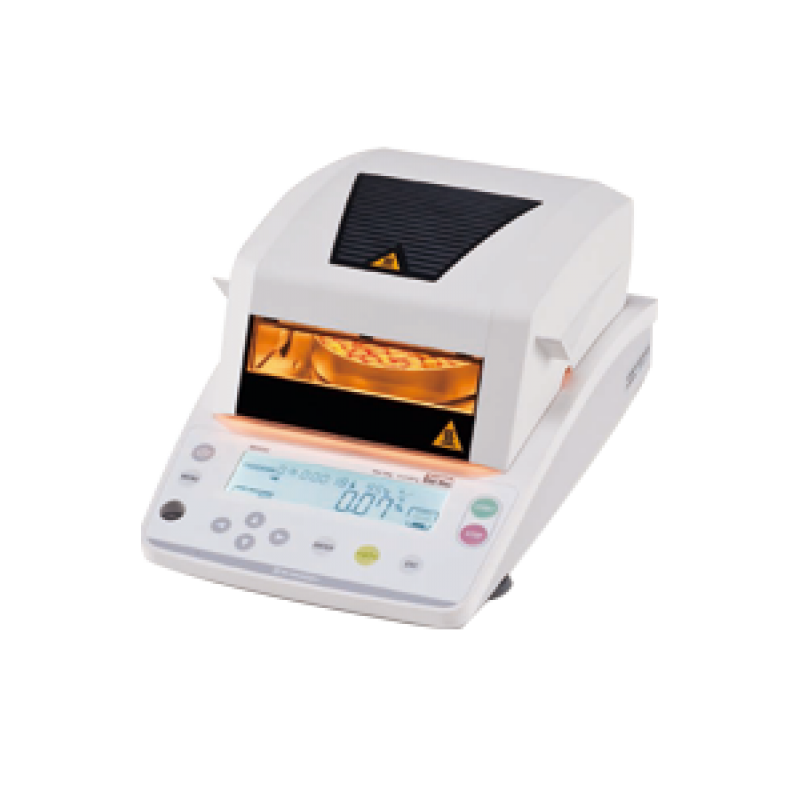

Moisture ratio measurements are indispensable for quality control and as checks of raw materials in a variety of industries including food products, chemistry, and pharmaceuticals. The MOC63u electronic moisture analyzer is capable of accurate, quick and easy moisture ratio measurements. Just place the sample in the sample pan and close the cover to start the measurement. This instrument can accommodate virtually any sample and will contribute to enhanced user productivity.
Capacity | Max | 60 g |
Min | 0.02g | |
Minimum readability | 0.001g | |
0.01/0.1% (Selectable) | ||
Repeatability (*1) | 0.15% (2g) | |
0.05% (5g) | ||
0.02% (10g) | ||
Drying Heater | Straight type halogen heater | |
Power | 400W | |
Temperature range setting | 50-200°C (1°C increments) (There is a time restriction when exceeding 180°C.) | |
Display | LCD with Backlight | |
Pan size | φ95mm | |
Dimensions (W×D×H) mm | 202 x 336 × 157 | |
Weight | Approx 4.2kg | |
Operational temperature and humidity range | 5 to 40°C, 85%RH or lower | |
Measurement modes | Standard (Easy start/Automatic end/Timed end) | |
Rapid drying (Easy start/Automatic end/Timed end) | ||
Slow drying (Easy start/Automatic end/Timed end) | ||
Step drying (Easy start/Automatic end/Timed end) | ||
Timer setting | 1-240 minutes or continuous (max 12 hours) | |
Interface | RS-232C (9-pin connector) I/O port | |
USB port | ||
Measurement conditions data memory | 10 | |
Data memory | 100 | |
Temperature calibration kit | Option | |
Standard accessories | Sample pans (3 aluminum pans), pan supporter, windbreak, Heater insulation plate, aluminum pans (50 disposable pans), Sample pan handler, power cable, spare fuses (2), protective display cover, hexagonal wrench | |
