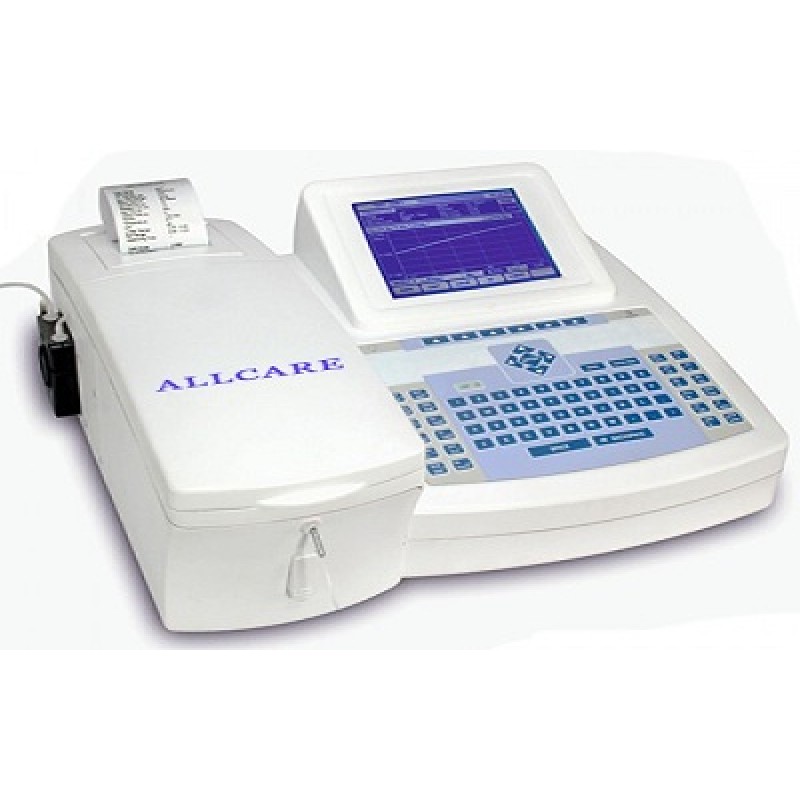

Reliable, Robots & User Friendly

Quick Features:

• Auto Air Purge between samples to avoid carry over.
• High Accuracy results with good repeatability at best Price.
• Auto Sleep mode for Lamp to prolong its life.
• 48 direct test access keys for user friendly operations.
• Dynamic temperature control by Peltier.
• Flow cell and cuvette reading Available.
• Real-time absorbance Curve and Temperature display.
• Inbuilt high quality Thermal Printer.

OPTICAL SYSTEM

• Flow Cell :- 30 pl quartz flow cell
• Light Source :- Halogen lamp 6V/10W
• Temperature :- 25‘C, 30°C, 37°C, RT
• Temperature Control :- By peltier device
• Photo Detector :- UV Enhanced Silicon photodiode
• Cuvette option :- 10mm square cuvette/ Round cuvette (optional)
• Filter :- 7 interference filters (340, 405,505,546,578,620&670nm) with 3 optional positions
• Filter Selection :- Stepper motor based filter wheel

MEASURING SYSTEM

• Analysis Method :- End point/ Fixed time/Kinetic/Turbidimetry /Absorbance
• Reaction Volume :- 350—l000u|
• Aspiration :- Peristaltic pump with stepper motor
• Photometric Range — 0.1 to 3.0 Absorbance
• Resolution :- 0001 Absorbance
• Repeatability :- Cv< 0.5%
• Carry over :- < 1%
