Texture Analyzer

Texture Analyzer

Product Details :

Usage/ApplicationLaboratory Use
BrandHORN, TAIWAN

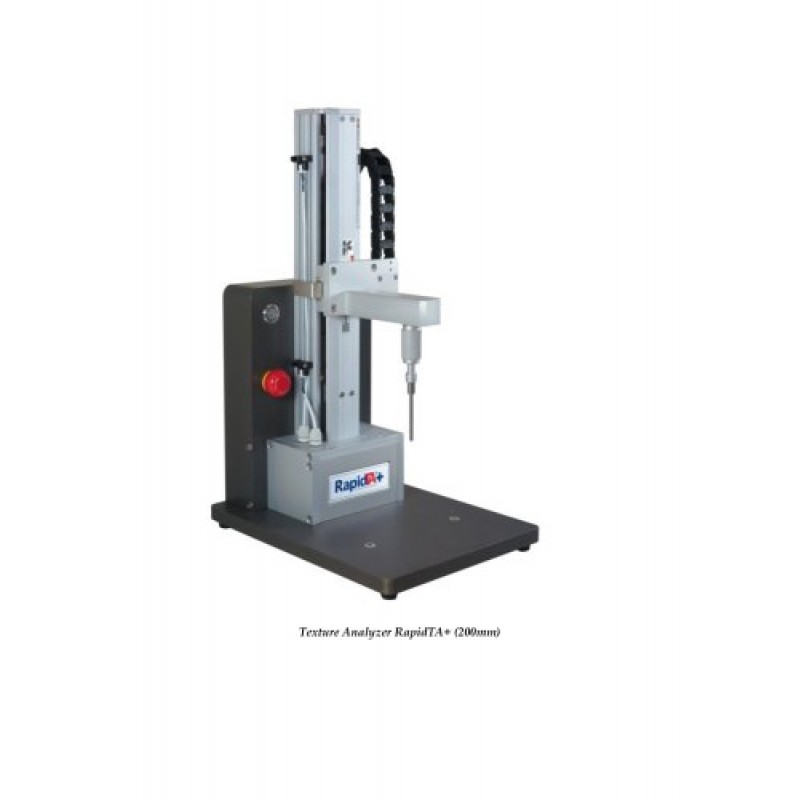

Model Name/NumberTexture Analyzer RapidTA+ (200mm)
Dimension250 W x 320 D x 500 H
Force Resolution5, 10, 20, 25 kgf
Load Cell Accuracy0.1gf
Load Cells Or Force Range5, 10, 20, 25, kgf
Max Product Height200MM
Weight12.5 kg
Position Accuracy0.1mm+-1digit
Speed Accuracy< .1 %
Speed Range0.025 - 10mm/s continuous variable speed
Position resolution0.001mm
Travel range205 mm
Normal speed range0.025 - 10mm/s continuous variable speed
Data acquisition rate1000 Hz
Data display and output rate10 Hz-1000 Hz
Power supply100/240 VAC 50/60 Hz


PC controlled Texture analyzer to determine the textural & rheological properties viz. hardness, cohesiveness, springiness,  adhesiveness , fracturability, Gumminess, chewiness  etc of food products viz. bakery, cereals, confectionery, snacks, dairy products, fruit, vegetables, meat products etc.


Test mode:

  • Basic single test
  • Cycle test
  • Relaxation Test
  • Texture Profile Analysis Test
  • Creep / Adhesion Test
  • Automatic Interruptions (Break) Program
  • Automatic Calibration by USER: Automatic Height correction / redefined Zero Point, Standard weight correction
  • Automatic Calculation


Additional Information:

  • Item Code: RAPIDTA200PLUS
  • Delivery Time: 5 - 6 weeks
  • Packaging Details: standard
