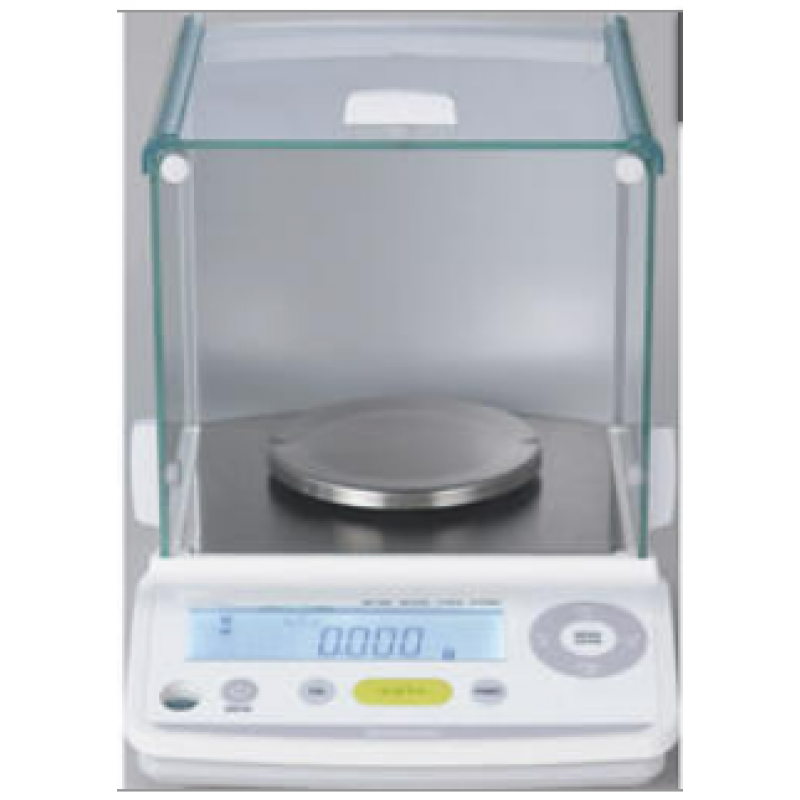

TW223L Electronic Analytical Balance
Product Details:
Capacity 220 g Pan Size 110 mm Linearity +/-0.002 g Weight TX: 3.8 kg TW: 4.2 kg Repeatability 0.001 g Minimum Display 0.001 g Operating Ambient Temperature 5-40 Deg C Temperature Coefficient Sensitivity +/-3 (ppm/ Deg C) (10-30 Deg C) Main Body Dimension W206xD291xH241 mm Power Requirements 12V, 1A
The TX/TW series incorporates a one-piece aluminum alloy mass sensor technology (UniBloc), first introduced by Shimadzu for precision balances in 1989. It excels in performance, and resists deterioration and damage by ordinary impacts. The UniBloc's compact, uniform structure replaces 70 parts found in a conventional electromagnetic balance sensor assembly and ensures stable temperature characteristics, excellent response
time and stable corner-load performance.The UniBloc design permits a consistency of production that assures reliability and a long operational life.
Comparator function
- Compare samples to target values or pass/fail criteria and clearly indicate the results.
Expanded Piece Counting function
- Unit weights of up to 5 different samples can be easily entered, stored and recalled for use.
Capacity | 220 g |
Pan Size | 110 mm |
Linearity | +/-0.002 g |
Weight | TX: 3.8 kg TW: 4.2 kg |
Repeatability | 0.001 g |
Minimum Display | 0.001 g |
Operating Ambient Temperature | 5-40 Deg C |
Temperature Coefficient Sensitivity | +/-3 (ppm/ Deg C) (10-30 Deg C) |
Main Body Dimension | W206xD291xH241 mm |
Power Requirements | 12V, 1A |
Power saving function
- When weighing operation ends, power automatically turns off after a fixed or pre-set time.
Fast and flexible calibration
- Balance display provides prompts for the calibration procedure and accepts your choice of external calibration weight.
Many useful functions included
- Alpha-numeric menu display
- Up-front level indicator on display panel
- Simplified door cleaning
- Stainless steel pan
- Choice of weighing modes
- Zero tracking function and settings
- Continuous data output function
Touch-key Internal Calibration
Press just two keys to calibrate the balance whenever calibration is necessary.Calibration is very fast, taking only 15 sec.
Illuminated display provides comfortable display visibility in all settings.
A liquid crystal indicator with an attractive light blue backlight is standard on all models. The TXB series has an additional power-saving feature the backlight automatically shuts off when idle and lights up again when weighing operations resume.
