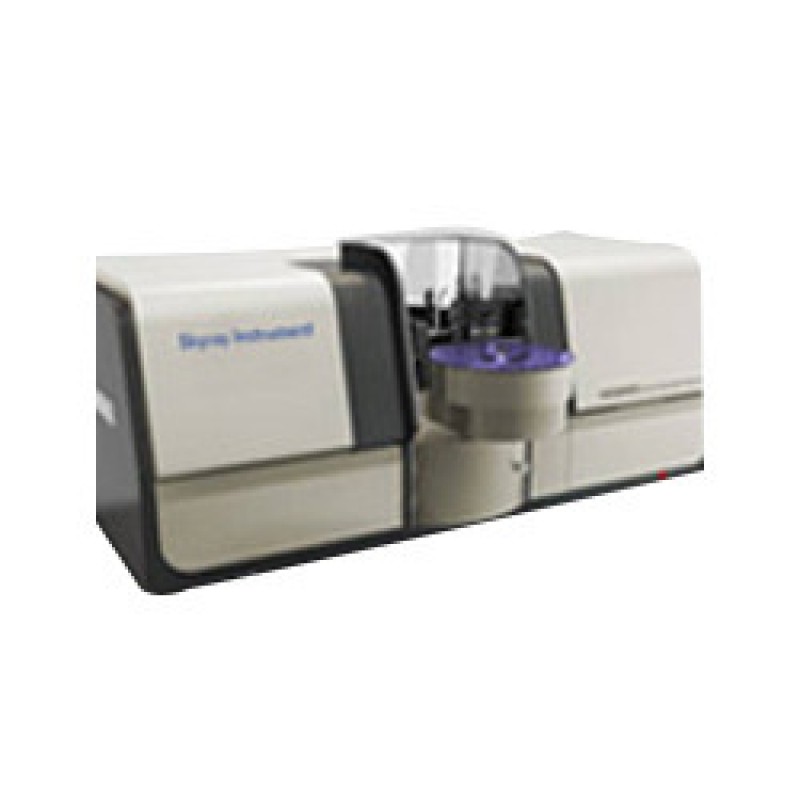

Skyray Atomic Absorption Spectrometer

These are specifically developed Skyray Atomic Absorption Spectrometer to meet varied needs of the clients.

Product Details:

• Easy to use and maintain
• High strength
• Reliable performance
• Robust structure with advance technology
• Long service life
• Fast processing

Technical Specification :

• Model: AAS8000
• Monochromator: Czerny-Turner
• Grating ruling density: 1800g/mm
• Wavelength range: 190nm – 900nm
• Wavelength accuracy: ±0.25nm
• Wavelength repeatability: < 0.10nm
• Spectral bandwidth: 0.1/0.2/0.4/0.7/1.4 nm
• Power: 220V±22V, 50Hz±1Hz, 600W (peak value)
• Reading mode: peak height and peak area
• Signal: atomic absorption and background correction
• Graphite furnace
• Temperature range: room temperature to 3000℃
• Warm-up rate: 3000℃/s
• Cd precision: < 2%
• Cd detection limit: < 1pg
• Power: 220V±22V, 50Hz±1Hz, 5KW (peak value)
• Graphite furnace auto-sampler
• Sample disk: 80 sample cups and 5 test cups
• Sample cup: 0.8ml sample cup and 4.6ml test cup
• Syringe: 50ul high-accuracy micro-dosage syringe
• Range of sampling volume: 1ul - 30ul
• Sampling precision: 1ul
• Repeatability: 1 - 100

Standard Configurations :

• AAS8000 instrument
• Graphite furnace atomizer
• Automatic temperature control circulation device of cooling water
• Accessory case (including CD and narrow-line source, etc.)

Optional Configurations :

• Graphite furnace auto-sampler
• PC
• Printer

Standard configurations of instrument :

• Monochromator
• Photoelectric converter
• Narrow-line source
• Gas circuit control casing
• Electric circuit control system
• Graphite furnace auto-sampler
• Graphite furnace atomizer
• Graphite furnace power

Application fields :

• Geology and mining, analysis in metallurgy and steel industry, nonferrous metal analysis
• Environment analysis, air condition monitoring, water quality analysis, analysis of soil and solid wastes
• Analysis of petrochemicals and light industrial products, analysis of crude oil and its products, analysis of chemical and light industrial products
• Food analysis, biochemical and health products analysis
• Building materials analysis (glass, ceramics and paint, etc.)

Additional Information :

• Item Code: AAS-8000
