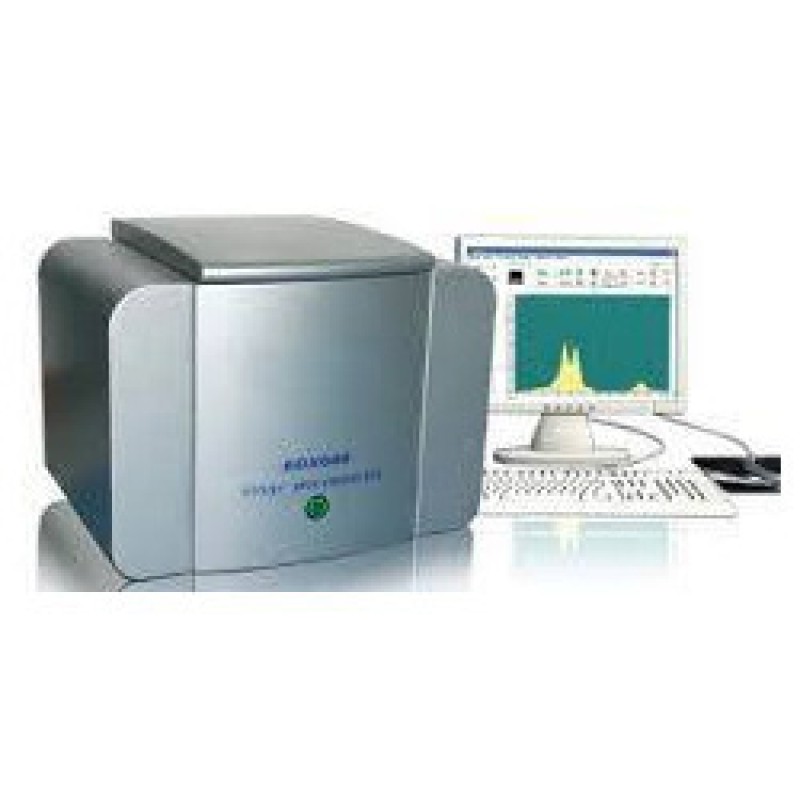

Energy Dispersive XRF Spectrometer

We are fostered in the market by providing broad spectrum of relevant products such as Energy Dispersive XRF Spectrometer.

Product Details :

• Easy to install
• Economical maintenance
• Less noise making operation
• Consistent performance
• High strength
• Long service life

Instrument Introduction :

EDX600 incorporates Skyray’s years of experience in precious metals testing with unique product configurations and fully functional software. Its ergonomically design and friendly software interfaces grant the users a simple measurement job.

EDX600 is configured with an efficient and practical proportional counter, delivering compositions and plating thickness measurements of precious metals in a reasonable cost. The novel EDX600 has modern outlook, structure and color design.

Performance Characteristics :

• Specialized precious metals and plating thickness testing
• Intelligent Precious Metals Analysis Software matches perfectly with the hardware.
• Arbitrary optional analysis and identification models
• Independent matrix effect correction models
• Multi-variable non-linear regression procedure

Technical Specifications :

• Measurable elements: Au, Ag, Cu, etc
• Measurement Precision (Standard Deviation Statistic): 0.05%~0.1% ( main element content over than 96%)
• 0.01um~0.05um (for coating element analysis)
• Tube voltage : 5-50KV
• Tube current : 50-1000μA
• Test time : 60~100s
• Ambient humidity : <=70%
• Ambient temperature : 5℃-30℃
• Power : AC220V+-5V( AC purified stabilized voltage power supply is recommended)

Standard Configurations :

• Single sample chamber
• Laser positioning device
• Proportional counter
• Signal detection electronic circuit
• High and low voltage power supplies
• X-ray tube

Application Fields :

• Content determination of precious metals Au, Pt, Ag, etc and jewelries
• Thickness measurement of metal plating and content determination of plating solutions and plating
• Precious metals and jewelries processing industries, banks, jewelries shops and testing centers, plating industries

Additional Information :

• Item Code: EDX-600
