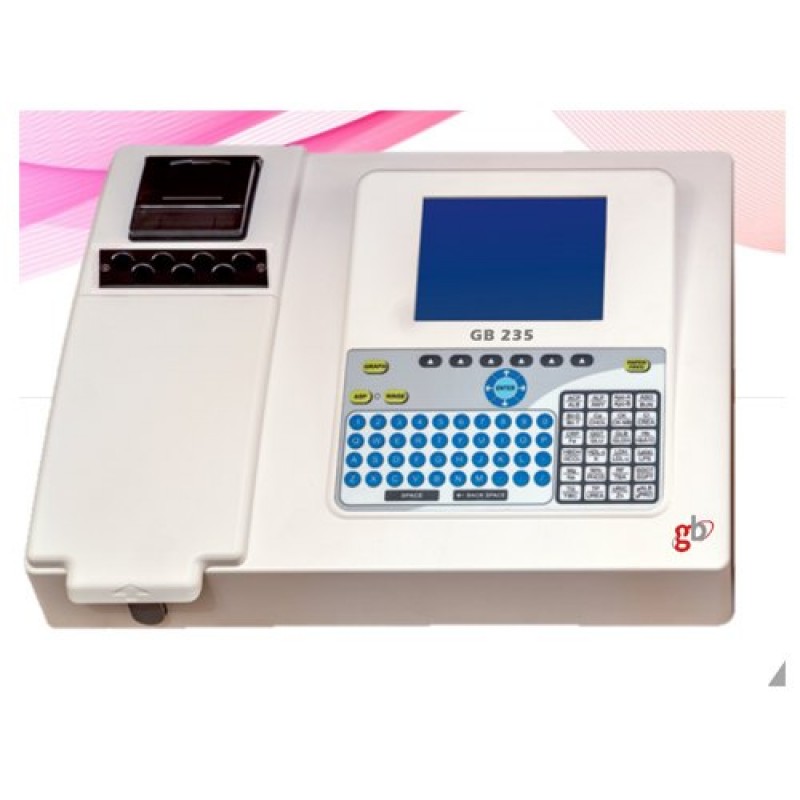

GB 235 Semi Automatic Chemistry Analyzer

Product Details :

Features :

PHOTOMETRIC MODULE :

• Seven Narrowband Interference Filters
• IAD process ensures long filter life
• Silicon Photo Diode detector
• CV:<1%

ANALYSIS METHOD :

• Endpoint, Fixed time and Kinetic
• Sample blanking and Reagent Blanking
• Direct Absorbance measurement mode
• Coagulation Mode (PT/APTT/TT

TEST PROFILES :

• User defined 10 Test Profiles
• 10 tests can be added in each profile

TEMPERATURE OF FLOW CELL/CUVETTE :

• 25°C,30°C,37°C Temperature Stability : ±0.2°C

TEST CHANNELS :

• 48 dedicated assays
• Direct access keys for dedicated assays
• Open channel capability
• 200 programmable channels

DISPLAY :

• 5.7 Inch LCD display screen
• High Contrast Display

KEYBOARD :

• Tactile touch QWERTY keypad
• Visual indication on keypad during aspiration

PRINTER :

• Internal 57mm thermal printer with full graphics Printing

MEASURING MODULE :

• Dual mode (Flow cell & Cuvette)
• High quality Quartz flow cell for precise measurements
• 30 Ul Flow cell volume
• Peltier-controlled reaction temperature
• External cuvettes (10mm path length)

REACTION VOLUME :

• Minimum aspiration volume - 300u.l
• Maximum aspiration volume - 5ml

DATA MANAGEMENT :

• Storage of up to 10,000 test results
• Stores 30 days QC for each Assay
• Reagent Blank storage

REPORTS :

• Search by date, sample ID or Test Name
• Calibration Reports, QC results

INTERNAL INCUBATOR :

• Positions : 7
• Temperature : 37 Degree

QC AND CALIBRATION :

• Daily and monthly QC with data archiving.

UNITS :

• 15 pre-defined measurement units

INTERFACE :

• RS 232 Port
• USB Port
• PC Connectivity (optional)

POWER :

• Input Voltage Range : 88-264 VAC
• Frequency Range : 47-63 Hz
• Power consumption : 75Wmax
