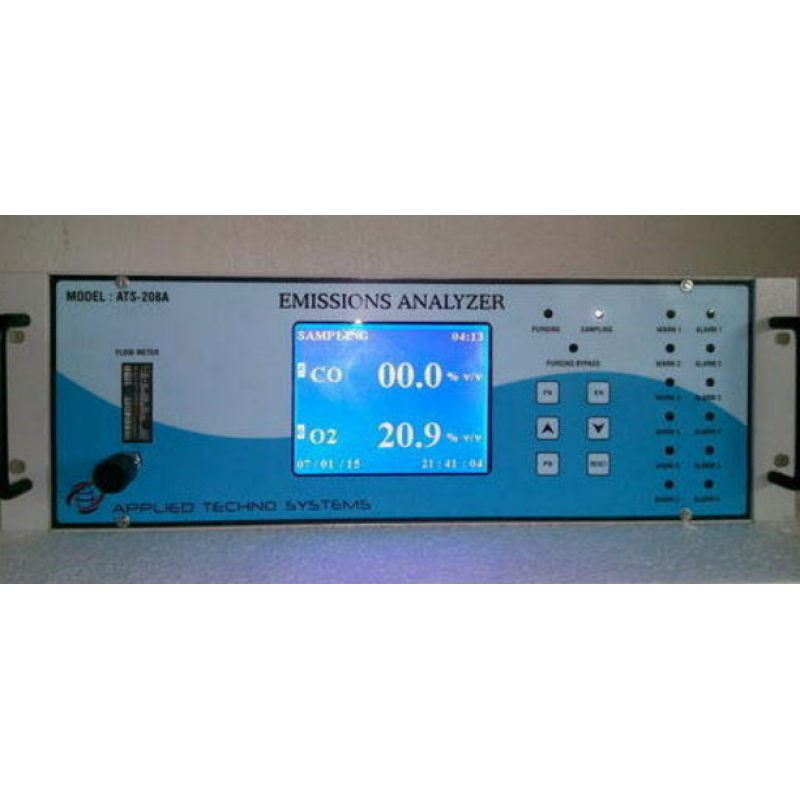

Online Stack Gas Analyser

Product Details:

Brand	Applied Techno Systems
Usage/Application	Industrial Use,Laboratory Use, Etc
Power Supply	230 V AC or Lithium Rechargeable Battery
Analysis Time	30 Sec
Display Type	Graphics LCD
Response Time	<5 Second
Temperature	-15 Degree C
Humidity	< 85%RH
Material	Aluminum
Country of Origin	Made in India

Specification:

• Principle Electrochemical, TCD (Thermal Conductivity) , NDIR (Non Dispersive Infrared ), Zirconium and Paramagnetic

• Range %V/V, % LEL, PPM, Mg/M3

• Resolution 0.1 Unit or 1 Unit (Application based)

• Sampling Method Auto Suction

• Gas Sampling Probe Dia 8mm SS 316

• Display 320 X 264 Graphic LCD

• Alarm Relay Contact NO NC

• Analog Output 4-20mA

• Digital Out Put RS 232, RS 485 and Modbus Communication Protocol

• Power Source 230VAC

• Accuracy /2%

• Response Time

• Data Storage 5000 or 10000

• Computer Interface RS 232, USB, RS485

• Sensor Life 2-3 Years

• Environmental

• Temperature 15degree Celsius

• Humidity < 85%RH

• Atmosphere Pressure 86- 106Kpa
