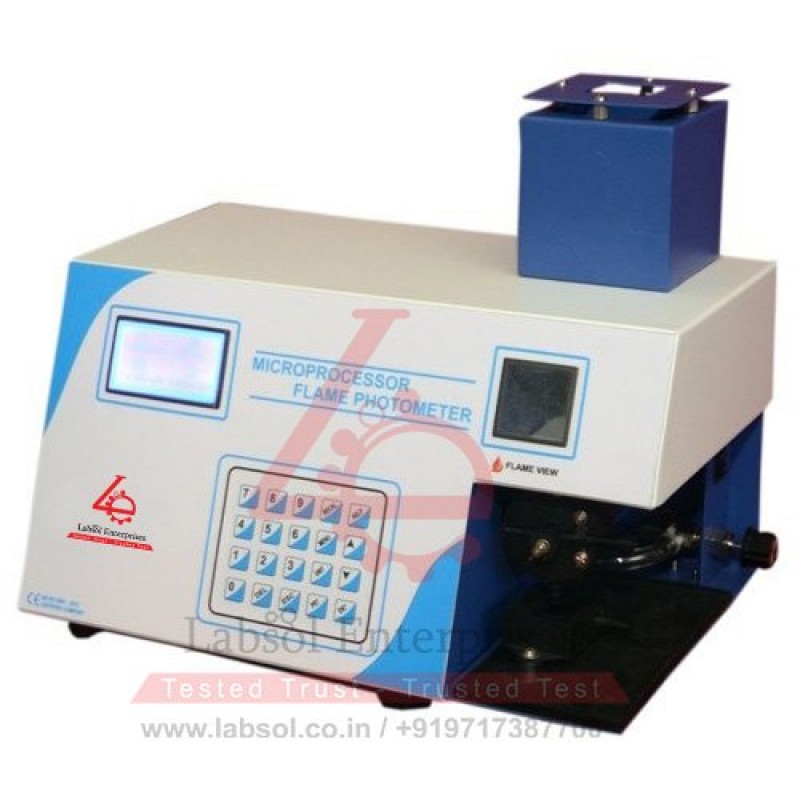

Microprocessor Flame Photometer
Product Details :
Display | Large LCD display 20x4 lines graph through RS232 |
Calibration | Up to 5 points Calibration with curve fitting software |
Range | Na 0-100 ppm Upto 250 meq/I, 1 100 dil. K 0-100 ppm Upto 250 meq/I, 1 100 dil. Ca 0-100 ppm Up |
Sensitivity | Na 0.1 ppm, K 0.001 ppm, Ca 0.5 ppm, Li 10 ppm |
Weight | Main unit 8 kg (Approx.), Compressor 6.5 kg. (Approx) |
Power supply | 95 to 270V AC 50-60 Hz with inbuilt stabilizer |
Selection | 0.5 KVA stabilizer |
Units | ppm, mg and % age Selectable |
Reproductivity | +/- 1% FS +/- 1 Digit |
Curve fit Accuracy | +/- 2% of FS |
Aspiration | 4-5 Seconds |
Time scale Range | 0 to 100% Sensitivity for full scale |
Flame system | LPG & Dry Oil free air |
Detector | Photodiode |
Gas control | Adjustable with knob |
Ignition | Auto Ignition |
System fuel gas | LPG |
Burner | Stainless steel |
Dimensions | 365x245x220 mm Approx. (LXBXH) |
Air supply | By Oil free mini Compressor unit with pressure regulator |
Air compressor | With Built-in Regulator & Air filter to deliver stable & Moisture/ Oil free air supply 1 kg/cm2 |
Interface | RS232 |
Optical Management | Simultaneous analysis of 3 elements |
Filter | Microprocessor controlled stepper motor |
Features:
- Useful for both ppm and meq applications
- Measurement of four elements with single aspiration
- Automatic filter selection
- Curve fitting software (up to 5 Standards)
- Help key available at each and every operating step
- 20 Character x 4 Line alphanumeric LCD display
- RS 232 interface
Standard Accessories:
- Operation Manual: 1 No
- Dust cover: 1 No
- Mains Lead: 1 No
- Air pipe, Drain pipe: 1 Meter each
- Gas connection tube: 1 Meters
- Chimney: 1 No
- Capillary Tubes: 1 Meter
- Cleaning wire: 1 Set
- Hose clamps: 4 Nos
- Gas Ignitor: 1 No
Specifications:
Printer | Provision for attachment of Dot- Matrix printer of HP |
Laser Jet/ Inkjet printer (non-win printers) with | |
Centronics parallel interface | |
RS232 Interface | RS232 connector interface available (PC software at extra Cost) |
With Built-in Regulator & Air filter to deliver stable & Moisture/ Oil free air supply @ 1 kg/cm² |
