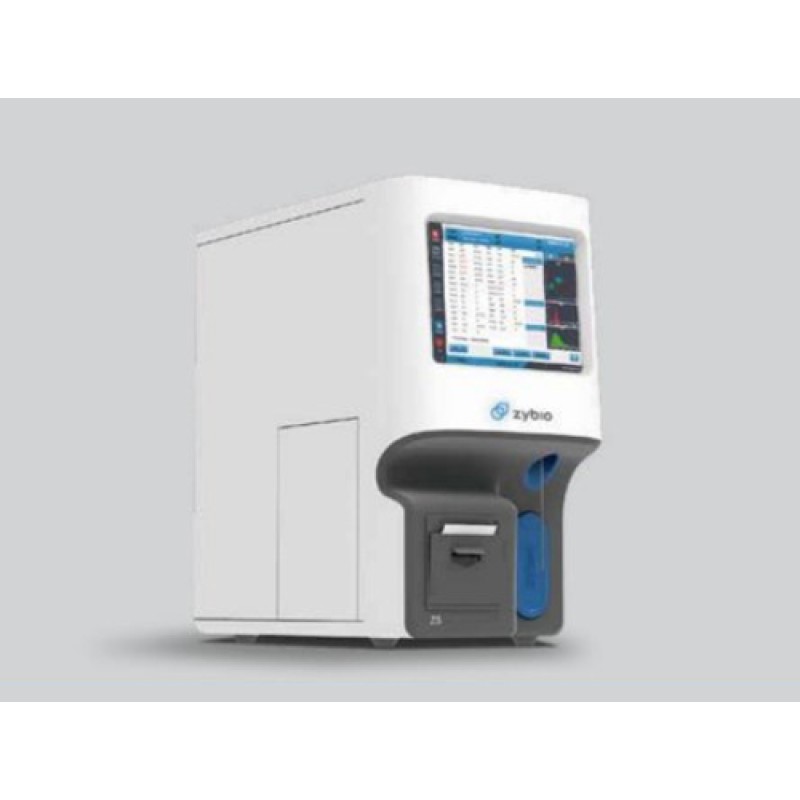

Z5 Hematology Analyzer

Product Details :

A small foot print Fully automated 5-Part Diff Hematology Analyzer that suits requirement of every mid -ize laboratory.

• Principal: Flow cytometry + tri-angle laser scatter + chemical dye method for WBC 5-diff differential analysis and WBC counting Impedance method for RBC and PLT counting. Cyanide free reagent for HGB measurement.
• Mode : CBC, CBC+DIFF
• Throughput : 60 samples per hour
• Parameters : 25 reportable parameters: WBC, Lym%, Mono%, Neu%, Bas%, Eos%, Lym#, Mono#, Neu#, Bas#, EOS#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PCT, PDW, P-LCR, P-LCC.            4 research parameters : ALY %, ALY#, LIC%, LIC#
• Graph : 3-D Diff scatter gram, 3 2-D Diff scatter gram,  2-D BASO scatter gram, 3 histograms for WBC and PLT
• Sample Mode : venous whole blood, Capillary whole blood, Pre-diluted.
• Sample Volume : Venous/Capillary whole blood:18 µL
• Reagent : Z5 LD Lyse, Z5 LB Lyse, Z5 DN Diluent, Probe Cleanser
• Calibration : Manual Calibration, Auto Calibration : Fresh Blood, Calibrator
• QC Rule : L-J, X-B
• Screen : 8.4 – inch touch screen
• Interface : 4 USB portfor external printer, external barcode scanner, mouse, keypad, etc., 1 network port, HL7 protocol, support bilateral LIS.
• Storage Capacity : ≥50,000 results including numeric and graphical information
• Power Supply :  (100-240)V, 50/60Hz, 200 VA
• Operation Environment : Temperature : (10-30)° C, Humidity : (20-85)%, Atmospheric Pressure : (70-106)kPa
• Weight : 25 Kg
• Dimension (mm ) : 230(W)* 435(D)*435(H)
