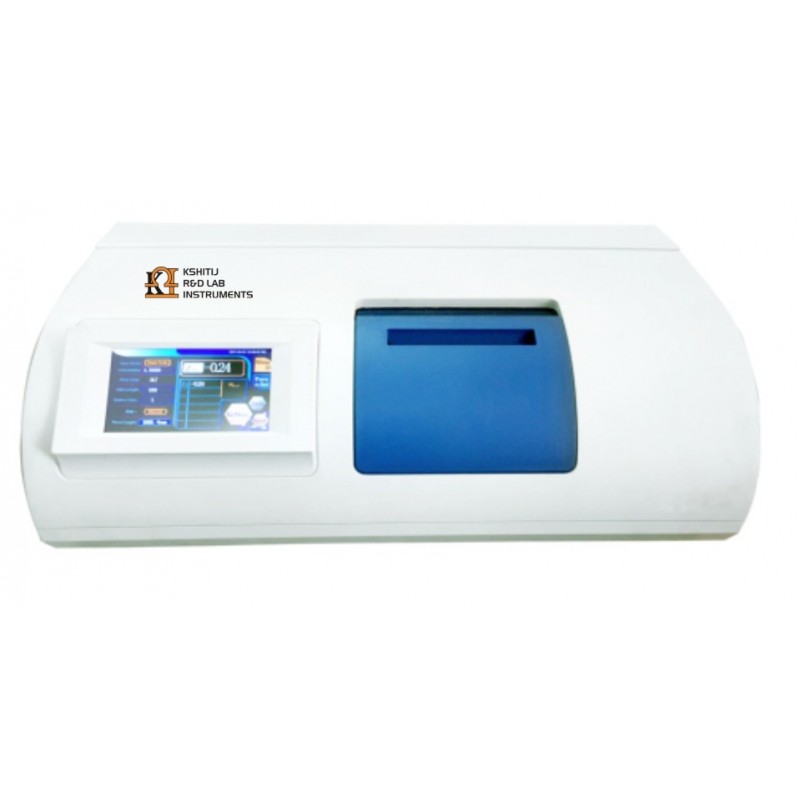

Automatic Polarimeter With Touch Screen, Model No.: KI- P702
Product Code :KI-P702
Product Features:
- Touch Screen Color Display
- Need not prewarm when turning on.
- Measuring specific rotation, optical rotation, sugar degree and concentration
- Measurement of dark-colored sample
- USB & Rs232
- Temperature Display
- Response Time 3°/sec.
- Faraday mangneto- optical modulator
- Polarizer Polarizing film
- Digital Polarimeter based on Optical null principle
- No warm-up time is required when instrument is switched on
- Insulated Sample chamber to keep sample temp. constant
Specifications :
| Model No. | KI- P702 |
| 4 Test Modes | Optical rotaspecific rotation sugar degree and concentration |
| Light Source | LED |
| Wavelength | 589.3nm |
| Measurement Range | +45° (optical rotation) +120°Z (sugar) |
| Minimum Indicating Value | 0.001° (optical rotation) 0.01°Z (sugar) |
| Accuracy | a)±0.01º (-15º < optical rotation <+15º ) b)±0.02º (optical rotation<-15º or optical rotation>+15º) |
| Repeatability | <0.002° (optical rotation) |
| Display | Color Touch Screen |
| Test Tube | 200mm/ 100mm |
| Sample Transmittance | >1% |
| Interface | USB & Rs232 |
| Operation Voltage | 220V + 22V/ 50Hz |
| Overall Dimensions | 850 x 500 x 470mm |
| Weight | 38kg |
| Software | Yes |
