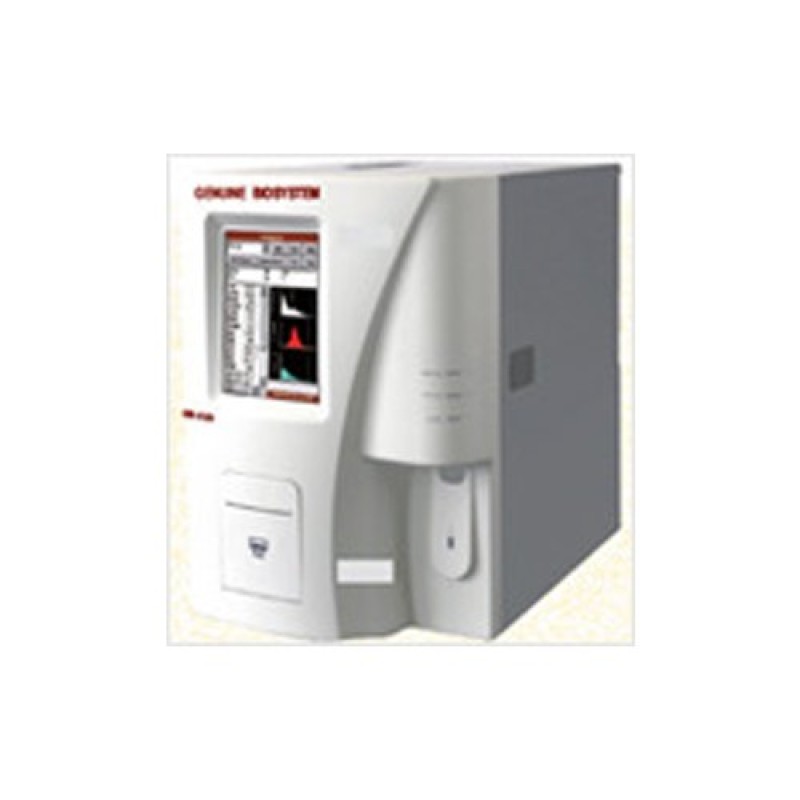

Genuine Bio System Gb 325 Automated Hematology Analyzer
Product Details :
Brand | Genuine Biosystem |
Model Name/Number | GB-325 |
Throughput | Two Chamber with 60 Tests/Hour |
Weight | 12 Kg |
Dimension | 345 mm x 245 mm x 325 mm. |
Function | Automated WBC 3-Differential,25 parameters with 3 colour histograms(WBC,RBC,PLT) |
Principal | BElectronic Impedance,SFT method of haemoglobin |
Display | TFT LCD (Optimal Touch Screen ) |
Connection Mode | USB,RS -232,network interface,LPT |
Parameter :
- WBC , RBC, HGB ,HCT ,MCV ,MCH, MCHC ,PLT , LYM % ,LYM # ,GRA %GRA# ,MID % MID #,PDW , MPV , PCT ,RDE –CV ,RDW - 3D ,PLCR,RCDW , LCDW and WBCRBC , PLT ,THREE HISTOGRAMES
Working Mode :
- Automatic sampling ,detecting automatic testing ,furnished with dilutor ,no need diluting outside .Automatic dispensing lyse and making second diluting automatically.
Storage :
- Large quantity test result storage , at least 400 thousand test results with comprehensive in formation. Extended memory supported.
Sample Volume :
- Anticoagulant Whole blood = 9.6 μL
- anticoagulant capillary blood = 9.6μL ,
- prediluted capillary blood = 20 μL ,
- the sample volume for repeating two
- times testing and avoiding second sampling.
Alarm :
- automated system diagnosis, self testing ,fault alarm and
Input Mode :
- Standard mouse and keyboard. Optional barcode reader.
Automated Maintenance :
- Automated washing during power on and power off , reducing the blockage rate .
Reference Volume Setting :
- Many reference value ranges(Children ,adult and the aged ).The appropriate reference valerene could be automatically selected according to the in putted age and sex .
Print Mode :
- Internal high –speed thermal printer. Optional connection with specified external printer.
Standby Protection :
- 24 hours switch on ,automatic sleep and wake up function.
Control Mode :
- Manual and automatic calibration available .Fresh blood calibration also available .
Analysis Mode :
- Optional Venous Blood ,Anticoagulant Blood and prediluted blood .
