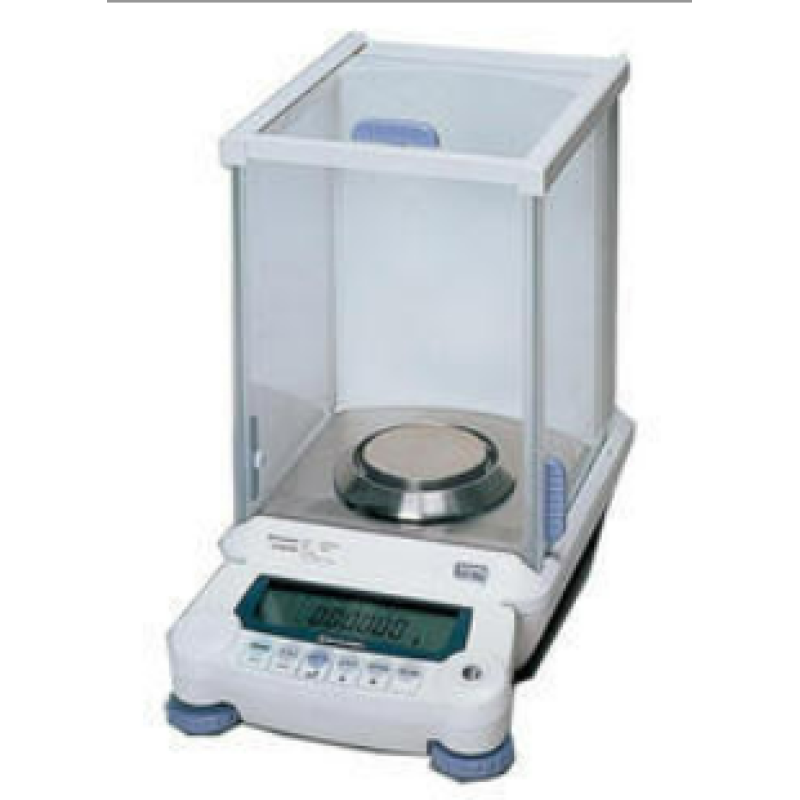

AUW Series Analytical Balance AUW220D

Product Details:

Response Time	3 s (large range), 15 s (small range)
Repeatability	Less than equal 0.1 mg (large range), Less than equal 0.05 mg (small range)
Linearity	+/-0.2 mg (large range), +/-0.1 mg (small range)
Capacity	220 g / 82 g
Minimum Display	0.1 mg / 0.01 mg
Operating Ambient Temperature	5 to 40 Deg C
Pan Size	80 mm Dia Approx.
Body Dimensions	W220xD330xH310 mm
Weight	7 kg Approx.
Power Consumption	7 VA Approx.
Temperature Coefficient of Sensitivity	+/-2 ppm/ Deg C (When PSC is Off) (10 to 30 Deg C)
Sensitivity Stability Against Temperature Change	+/-2 ppm (When PSC is On, 10 to 30 Deg C)

Excellent Weighing Performance

• Fast Response Compact UniBloc mechanism and digital processing technology produce fast response and stability at the same time.
• Environmental adjustment Microprocessor digital control can be set to automatically provide the most suitable data processing for the installation environment and weighing application.

Automatic Span Calibration

Span calibration is essential for accurate measurement in precision weighing to adjust for the effects of even small changes
in ambient temperature. AUW-D/AUW/AUX models have a built-in motor driven calibration weight to automate this
necessary operation. The balance can be set to take care of the calibration itself, leaving the operator to concentrate on
measurement work.

Fully-automatic calibration by temperature Room temperature change detection

The balance detects variations in the ambient temperature that influence accuracy and automatically performs calibration to compensate it. (AUW-D/AUW/AUX models) This great feature has been provided by Shimadzu since as early as 1985.

Fully-automatic calibration at user pre-set times

The balance automatically performs calibration at selected times, up to three times a day(e.g., before starting work, during lunch-break, or after work). (AUW-D/AUW models)

Span calibration at any time Touch-key calibration

Automated calibration can be started by pressing keys.
(AUW-D/AUW/AUX models)Also, your external calibration weights can be used for span calibration. (All models)

Application Support

• Efficient filling or dosing work "Pouring mode" brings very fast response with even a very small amount of sample added.
  Suitable for filling or dosing works.
• Formulation mode Convenient for making many measurements of minute samples and seeking the total mass.
• Specific Gravity Measurement Installing the optional SMK-401 specific gravity kit transforms the balance into a dedicated instrument for measuring specific gravity or density. Specific gravity measurement software is already installed in the Shimadzu balance.
• Below-weigh Hook for Hanging Measurement Measurement which cannot be performed within the weighing chamber is possible using the hook provided as a standard component.
• Piece Counting and Unit Conversion In addition to piece counting, the balance can also perform weight measurement as percentages and in a variety of mass units, such as carat.
• Interval Timer Data can be automatically output at time intervals set in the range from 1 second to 99 minutes 59 seconds. This function can be also combined with WindowsDirect. (AUW-D/AUW/AUX models)

User-friendly Features

User-friendly Weighing Chamber

• The large dimensions of the weighing chamber allow easy measurement of even tall flasks. Equalization in temperature before measurement is essential in precision weighing. This is easy with the extra space allowing samples to be kept inside the chamber. Weighing work is made easy by the smooth door movement.The doors can be detached to allow the chamber to be cleaned with ease and it is also possible to remove, clean or replace the door rail.

Easy Level Adjustment

• Level adjustment, particularly important in installing an analytical balance, can be performed with ease using an easy-to-view level gauge at the front of the balance and large level screws.

Metal Housing

• The aluminum die-cast housing offers lasting high quality exterior, r pr otection of the core mechanism, and ease of cleaning.
