Features
- 20 parameters+ 3 Histograms for WBD, RBC and PLT
- 3-part differentiation of WBC
- 3 Counting rnode: whole blood ,Pre-dlilulted Blood,Peripheral Blood
- LCD display with touch screen and Mouse Operation
- Throughput: 60 samples per hour
- Buillt-in thermal printer, optional external printer
- External AC adapter avoids electronic noises, enhancing accuracy
- Up to 50,000 sample results (including histograms) can be stored
- Multi—language software available on request

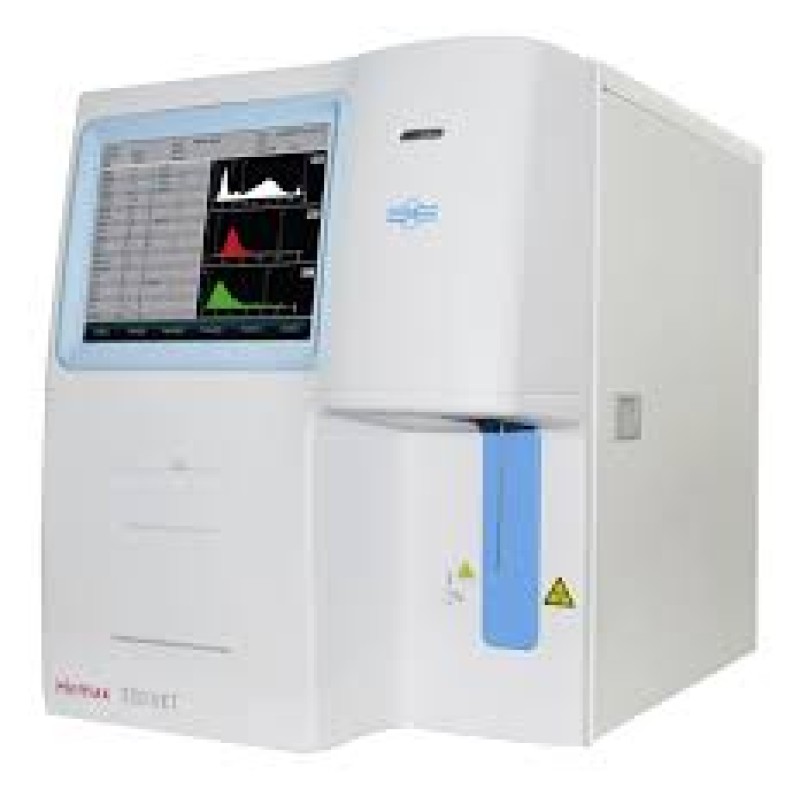

- Hemax 330 Hematology Analyzer
Technical Specification
- Parameters: WBC, LYM#, MID#, Gra#, LYM%, MID%, GRA%, HGB, MCHC, MCHC, MCH, MCV, HCT, RDW-SD, PLT, MPV, PDW, PCT, P-LCR And Histograms for WBC, RBC and PLT.
- Throughput: Up to 60 samples per hour
- Carryover: WBC/RBC/HGB<0.5%, plt<1.0%
- Accuracy(CV): WBC < 2.0%, RBC < 1.5%, HGB < 1.5%, MCV < 0.4%, PLT < 4%
- Principle: Electrical resistance for counting WBC, RBC and PLT.
- Sample Volume: Whole Blood 9.8; Pre-diluted Blood 20 Peripheral Blood 9.8
- Operating Environment: Temperature; 15C-35C; Humidity:<80%
- Alarm: Error Messages
- Input/Output: RS-232, USB, LAN, Keyboard and mouse interface
- Printout: Thermal printer, 55mm width paper, various printout formats external
- printer optional.
- Power Requirements: a.c. 110v-220v, 50/60Hz
- Dimension: 478mm(L)*330mm(W)*395mm(H)
- Weight: 23g
