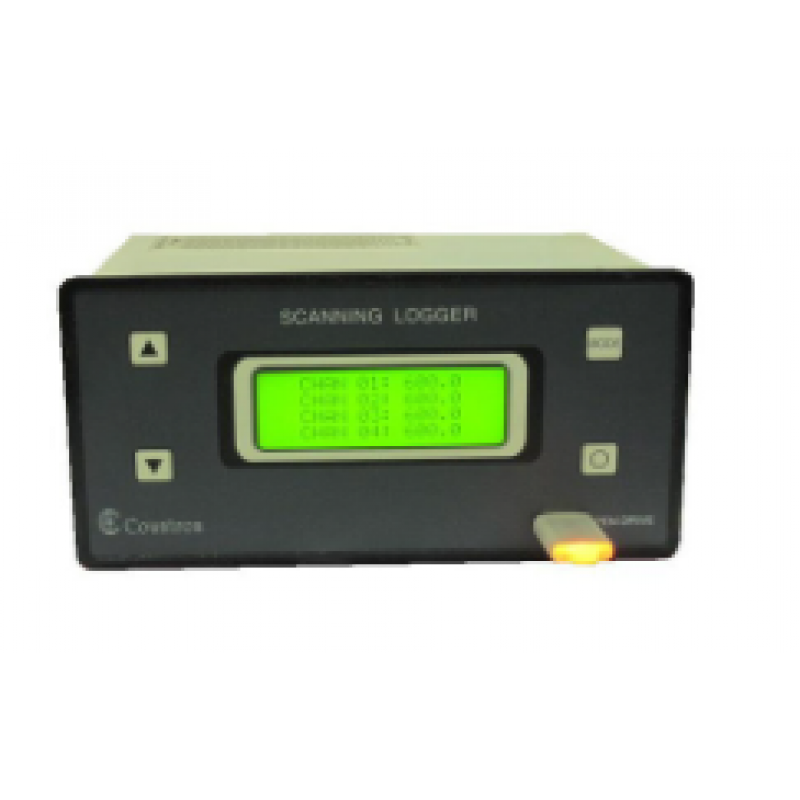

16 Channel Data Logger with Direct USB Pen Drive
Product Details:
Features
- Data saved directly on USB Pen drive in an MS Excel compatible file
- Microprocessor based linearised for J/K/R Thermocouples and PT100 temperature sensors.
- 4 line alphanumeric LCD display with backlight for user friendly displays
- Auto cold junction compensation for thermocouples and 3 wire input for PT100
- Number of usable channels selectable from 1-16.
- Auto/Manual mode of scanning selectable
- Rate of logging settable by user in Mins:Secs
- Digital offset user settable for individual channels
- Internal Real Time Clock with battery backup for saving values along with Date and Time
- No need of any complicated or additional software for managing data
- Saving data on Pen drive allows a very large amount of storage space at very low cost.
Specification
Display | 4×20 line 0.3” character height alphanumeric LCD module display |
Sensor | J/K/R Thermocouples and 3 wire PT100 sensor user selectable |
Range | J-T/C : 0 to 750˚C K-T/C : 0 to 1250˚C R-T/C : 0 to 1700˚C PT100: -100.0 to +600.0˚C |
Resolution | 1˚C for thermocouples and 0.1˚C for PT100 |
Channels | Maximum 16 |
Scanning Rate | User settable from 1-99seconds |
Digital Offset | User settable individually for each channel |
Logging Rate | 1 second to 99Mins59seconds |
Data Logging | Directly create a .csv file on the Pen Drive (compatible with Excel) giving a tabular format values of Date, Time and selected channels |
Real Time Clock | Adjustable Calendar (Month/Date) and Time (Hrs:Mins) |
Accuracy | ±1˚C ± 1 Least Significant Digit for Thermocouples |
Power Supply | 230V AC ± 15% at 50/60Hz |
Mounting Type | Panel Type |
Front Facia | 96mm x 192mm |
